Looking for fritzing file for potentiometer

parts help
1

Hello everybody
Recently I bought some potentiometers but unfortunately they are (little) too big for my PCB. I chek but I don’t find other file on Fritzing other than used. I need potentiometer with vertical adjust as this one on a PT15 box (1kO and 10kO) : https://fr.rs-online.com/web/p/potentiometres-trimmer/2858663
Box have 15mm of diameter instead of 12 (I think) on fritzing.
I check if file for this box exist without success. I found datasheet for “my” box, on same link below and I add copy screen of size on this present post, but, as I don’t know, how to create new file for fritzing, is there anyone who could createfile for me please ? Thanks by advance for your help

Have a nice day
Lolo

PT15_size_copyscreen
PT15_size_copyscreen857×285 29.3 KB

2

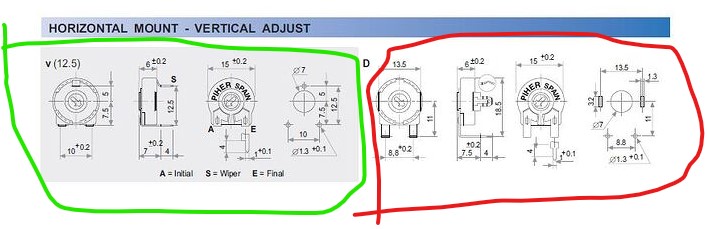

Which one do you want, the one circled in green or the one circled in red (as they are different the red has two addition mounting holes for the tabs the green appears to mount in the pins?)

capture
capture707×229 42 KB

Peter

3

Hello Peter
This one circled in green.
Thanks a lot for your help

4

This part should do what you want. Note the center hole isn’t drilled by default (it is unclear that it should be but their footprint appears to want it.) If you want a hole there you need to drag the pcb->hole part in to your sketch then set the hole size to 7mm.

15mm-Trimmer-Potentiometer-Large.fzpz (6.4 KB)

Peter

5

Yeaah, it seems to be ok !
Now I modify my PCB with this new footprint, thanks a lot peter !!
