Looking for Dracal I2C-TRH Sensor Part

parts help
1

PRE-WIRED I2C TEMPERATURE AND HUMIDITY PROBE FOR OEM APPLICATIONS
I2C-TRH Series

Hi,

I’m in need of the sensor head part

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

9ed22455-8f8c-4875-ac08-bba1c3f0278d
9ed22455-8f8c-4875-ac08-bba1c3f0278d574×1020 22.6 KB

Datasheet
The official documentation of the part manufacture is linked here: https://www.dracal.com/wp-content/uploads/2023/03/Dracal-I2C-TRH-Series-Datasheet.pdf

Signal Connections
V+ - Black
SCL - White
SDA - Brown
Ground (-) - Blue

2

Your part is now being made

Edit:

@onanagaba What are the dimensions of the sensor head

3

The diameter is not specified but the actual sensor length that measures is 180 cm long

4

OK then nvm let’s see how it goes

5

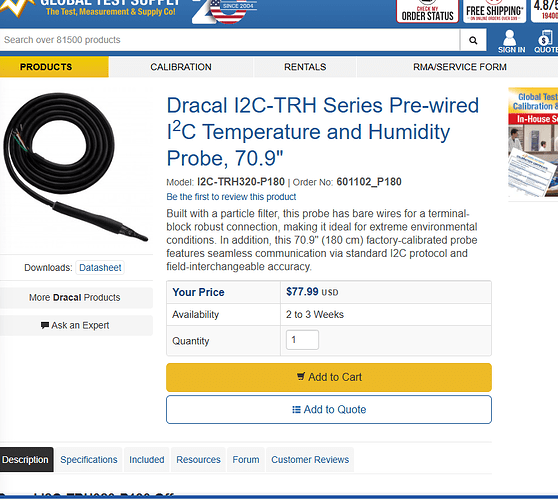

sure, this is what they show

image843×755 130 KB

6

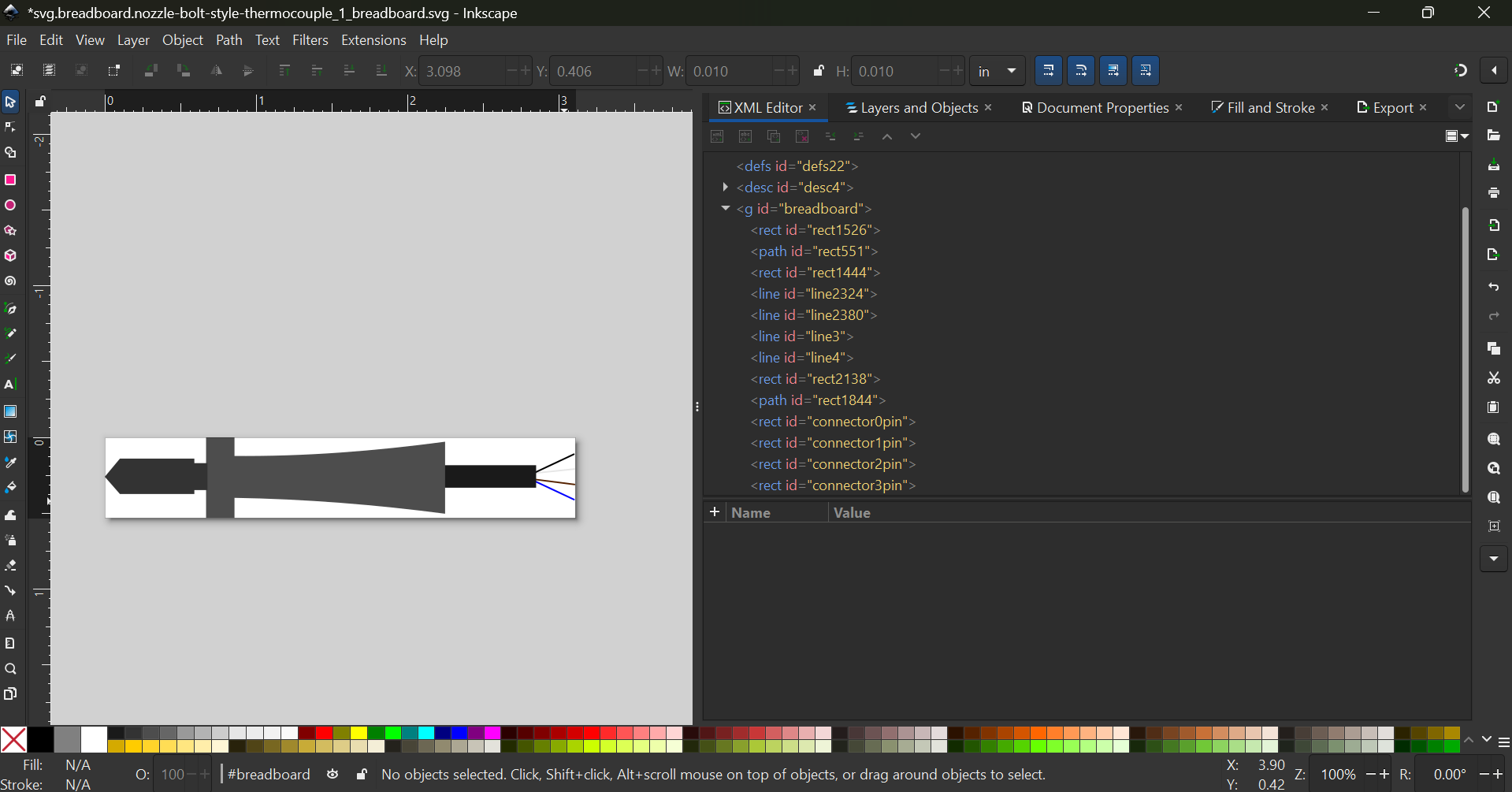

OK So I’v cloned the breadboard from another part

image1919×1005 70.8 KB

7

surely, that looks amazing

8

@onanagaba

Drecal I2C Temperature & Humidity Sensor.fzpz (5.6 KB)

9

Thank you so much Raptor. This is awesome

10

You welcome! Always happy to make parts :slight_smile:

1 Like
12

@onanagaba Please post in separate topic and delete above post. Thanks
