Looking for an RPM sensor (UMA T1A9-1)

parts help
21

Is that part equal to this ?

22

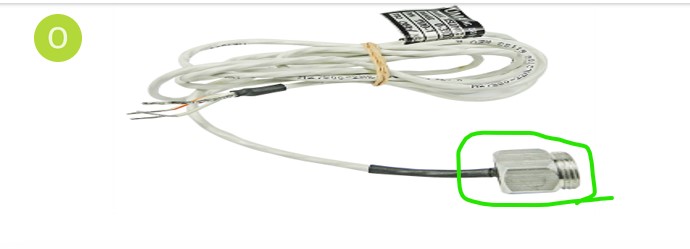

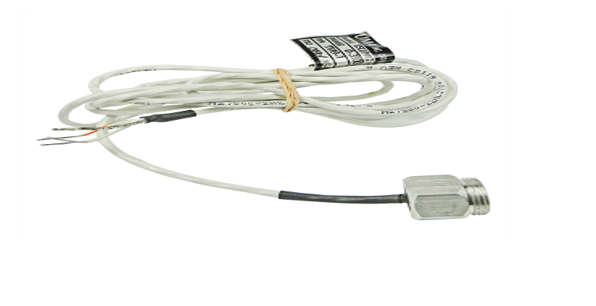

Yes, it is that part with the cable much shortened (the part is the part circled in green here.) The extra cable length isn’t useful in Fritzing the wires are the correct colors for the cable and will connect to the Arduino.

capture

Peter

23

thanks for your help man.

24

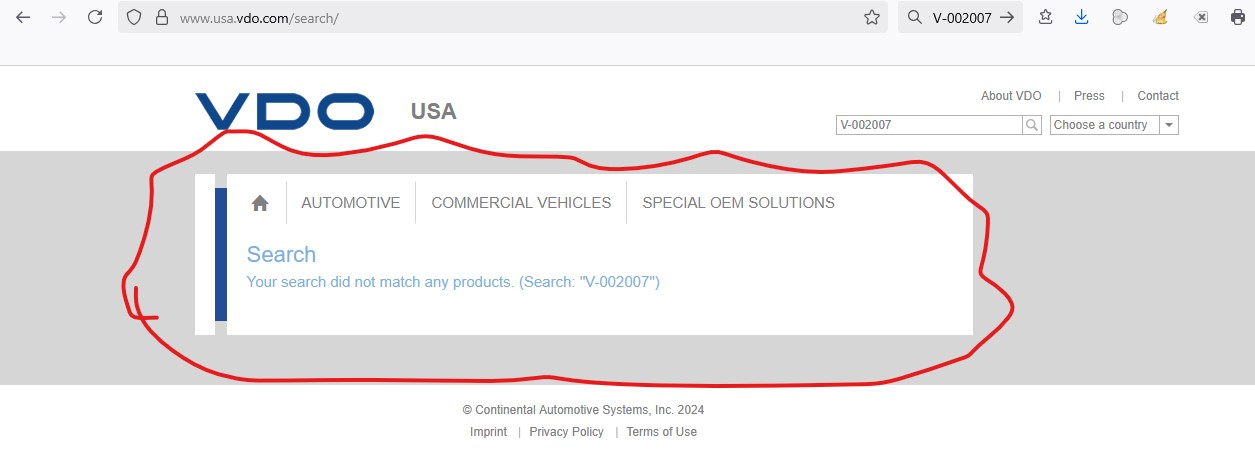

If you can supply web sites for the other parts you requested I expect we can make parts for them, but we need something better than low resolution images. For example your request for a VDO temperature sensor V-002007 in another post doesn’t find anything on the VDO web site

capture1
capture11255×450 55.2 KB

so they either no longer make the V-002007 part or this isn’t a correct part number for some reason. A google search for “VDO temperature sensor V-002007” turns up this amazon web site may help somewhat (mostly the description in the comments though, there doesn’t appear to be a data sheet anywhere)

https://www.amazon.ca/Temperature-100-248F-Thermostat-Detector-Accessory/dp/B087M4RJH1/ref=asc_df_B087M4RJH1?mcid=741c73a2345834e5bd465967193b9647&tag=googleshopc0c-20&linkCode=df0&hvadid=706726017741&hvpos=&hvnetw=g&hvrand=13423636478112428652&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9001561&hvtargid=pla-1953520332233&psc=1&gad_source=1

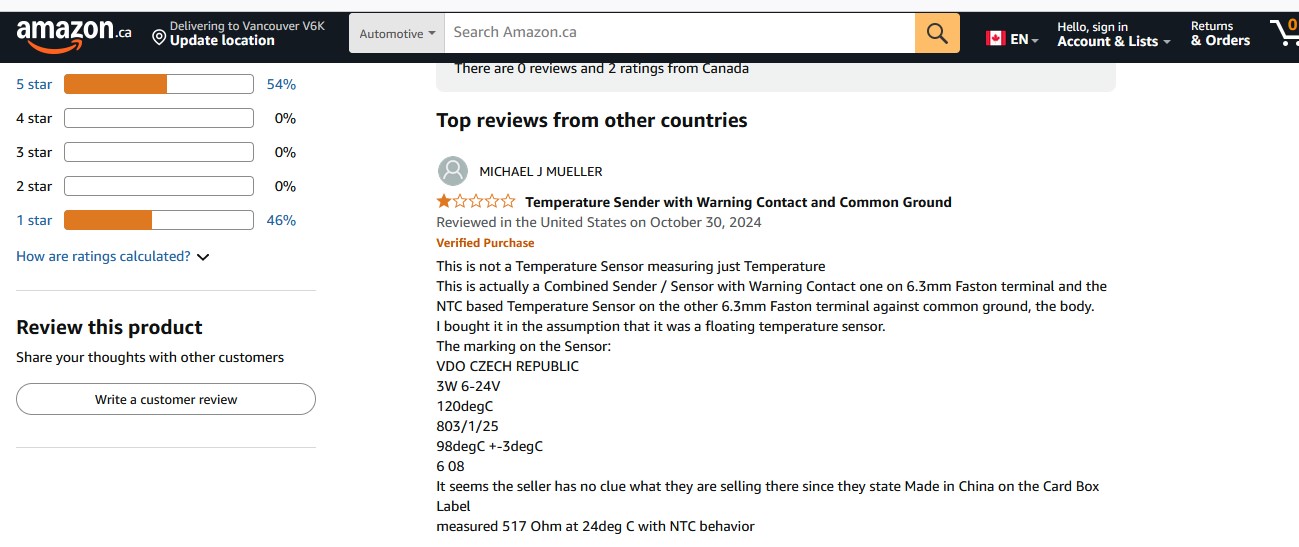

specifically this comment which seems to indicate it is a switch for over temperature and an NTC thermistor with the body as common ground. Depending on what this looks like when rendered you may need to go to the web site to actually read it. It is pretty blurry in the preview window. We really need a web site that specifies which terminal although a part could be made from this description I think (I just don’t know if it is the unit you want!)

capture
capture1299×547 115 KB

Peter
