Looking for Acclima TDR-305N Part

Hi everyone,

I’m looking for the TDR-305N soil moisture sensor part. [https://acclima.com/wp-content/uploads/Acclima-TDR305N-Data-Sheet-v2.1.pdf](https://TDR-305N Datasheet)


Thanks in advance.

Onan

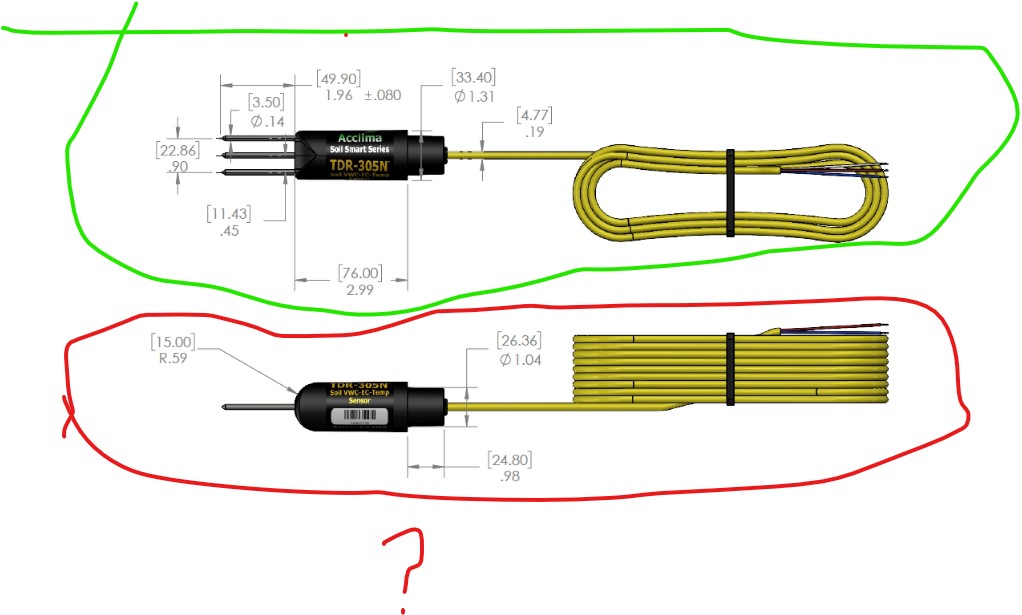

There are a variety of soil sensors around but not this particular one. The data sheet lacks any connector information but the user manual has that. It is unclear to me what the second thing in the data sheet is and if you want that (in which case we would need connector information for it too as it doesn’t appear in the user manual.)

Peter

Hi,
For the second part with only one pin connector don’t worry about it. It’s not necessary. I just need the sensor part itself. It has three wires (blue represents data, white represents ground and red represents power). I’m connecting it to the feather M0 Adalogger board.

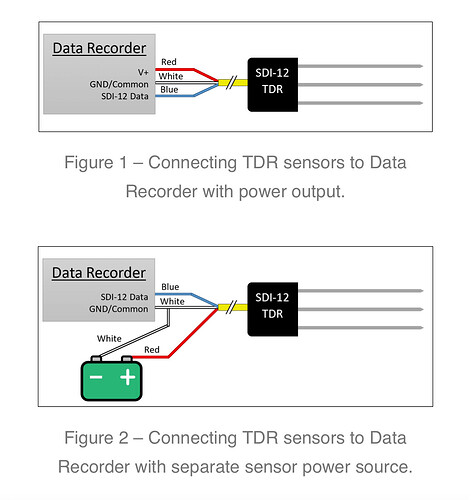

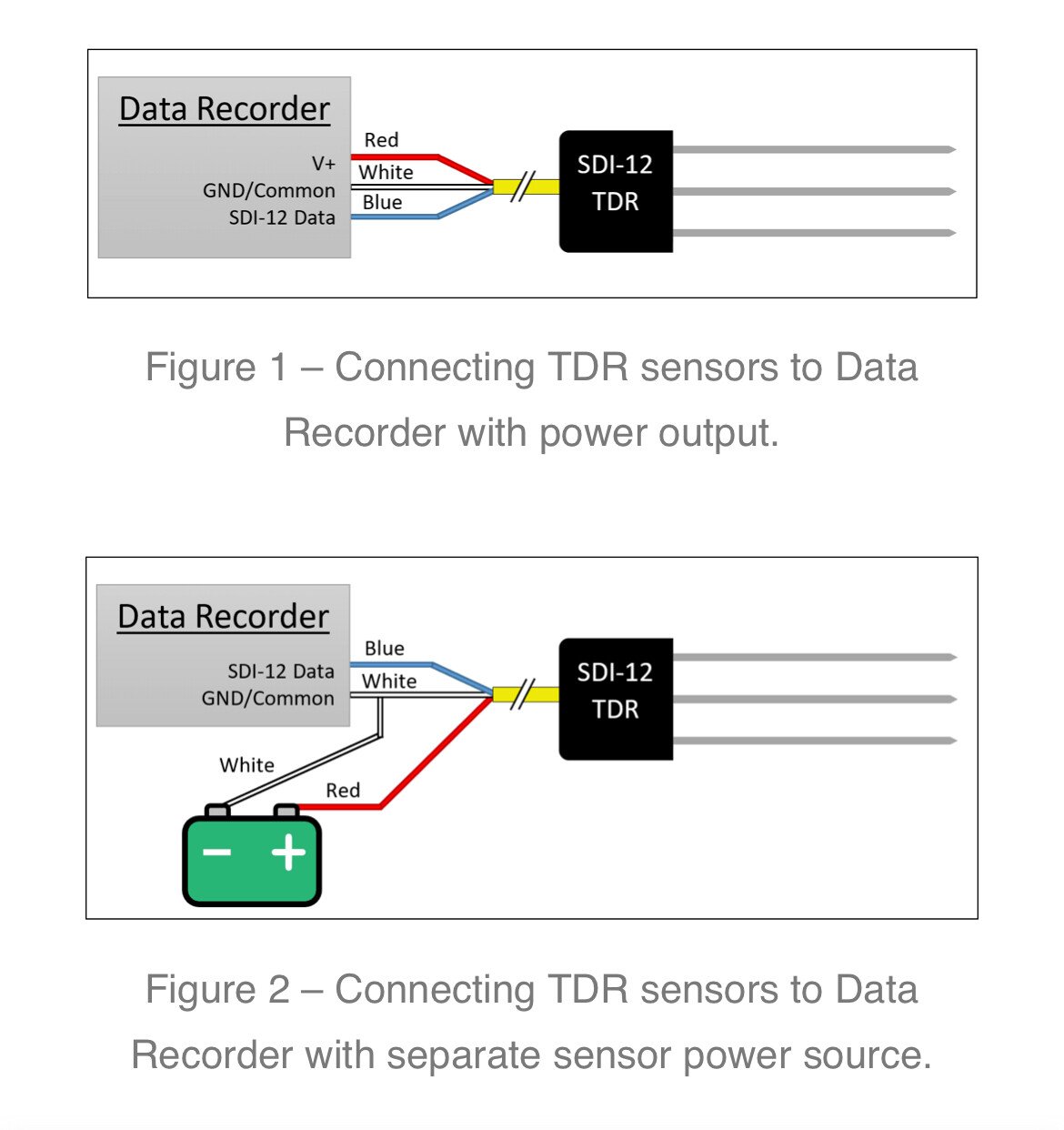

I understand this specific sensor seems to be new, but the idea is that any SDI-12 TDR can work. For example, the one in the attached picture is from Acclima TDR-305 manual (Acclima TDR Soil Moisture Sensor User Manual)

Thank you for your prompt response

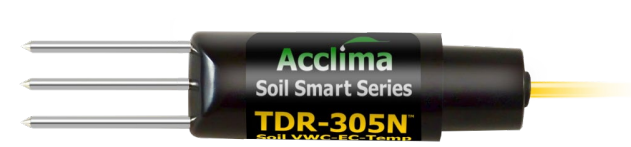

This part should do what you want.

tdr305n.fzpz (4.3 KB)

Peter

1 Like

Thank you, Peter!

You are the best.

Onan
