Looking for a roller lever switch, HEEEELP! :)

[staefen]

hi everyone,
im looking for this roller lever switch(link below)

Wholesale roller lever arm micro switch,roller lever arm micro switch Factories

thanks in advance

[vanepp]

Try this part

Limit Switch part

Yep, that is what I am trying to figure out, and thanks to @Old_Grey, I have an answer. The part is attached to this post, but someone should run it through the parts checker script to make sure I didn’t miss anything. Anyone who runs this thru the parts checker will find errors in the PCB because there is nothing in the copper groups in the .svg file, it’s just a silkscreen. If there are any serious errors, let me know and i will fix them. Randy Limit Switch.fzpz (11.0 KB)

while it is the module rather than just the switch it should serve the purpose.

edit there is also a module in core parts:

Peter

[staefen]

Hi Peter, thanks a lot:))

[Saniy_Haffiyan]

Hi everyone, can anyone help me with this? I know that “Fritzing” is mostly used for educational purposes, helping students see how various components connect to each other. However, this time I’m using Fritzing as software for my final project. This component is actually already in the library. However, I found some errors in the schematic layout, where the VCC and Signal pins are swapped, which will confuse others reading my schematic. Could someone help me slightly change the position of the VCC and OUT signs?

Here is an image of the sentence I mean by “swapped.”

Thank you so much for all the kindness in this community forum, I don’t have much time to fix it myself, but I hope someone can help me solve my problem.

Best regards,

Saniy Haffiyan

[Harald_Rau]

Hi Saniy,

Did you not finish writing your post, or am I misunderstanding your question?

Regards, Harald!

[Saniy_Haffiyan]

Hi @Harald_Rau actually, i need to fix the schematic view, that the VCC text must be on the pin number 1, and the OUT text must be on the pin number 3. i need to fix that for my documentation, could you help me with that @Harald_Rau ?
I’m apologize for my previous sentence that make you miss understood.

[Harald_Rau]

Yes, I think that’s no problem.

Is this about the part mentioned above, Limit Switch.fzpz?

I’ll take a look at it.

…or do you mean this part? It looks like VCC and Out may have been swapped.

Regards, Harald!

[Saniy_Haffiyan]

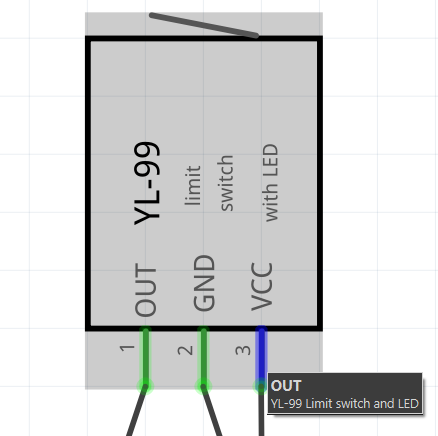

The breadboard view pins is correct, but i found a wrong placement about VCC and OUT texts are in the schematic view @Harald_Rau , so the VCC text is on the OUT pin, while the OUT text is on the VCC pin.

[Harald_Rau]

Yes, I saw that too. I’ll finish it today.

…You’ll need to import it as a new component, though.

Best, Harald!

[Harald_Rau]

Hi,

please try importing this part:

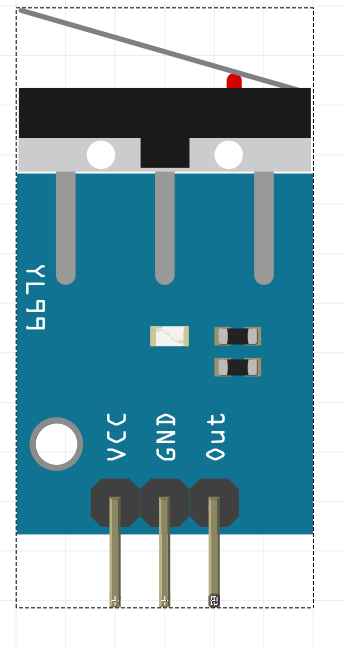

YL-99_Limit_Switch.fzpz (13.3 KB)

Does it look better now?

Regards, Harald!

[Saniy_Haffiyan]

Thank you so much @Harald_Rau for the time you took to help me, everything looks better now.

Best regards,
Saniy Haffiyan
