Looking for a JST part

1

Hi !

I want to use one of these parts
S2B-PH-K-S(LF)(SN)
B2B-PH-K-S(LF)(SN)
B3B-PH-K-S(LF)(SN)
S3B-PH-K-S(LF)(SN)

I am having problems finding it in the parts
i have found something in the sparkfun Lib called Header 3
when i choose that i can change it to
Package JST-3-PTH
Variant JST-PTH

is that the correct one or do i need to create a new part ?
\Thomas

1 Like
2

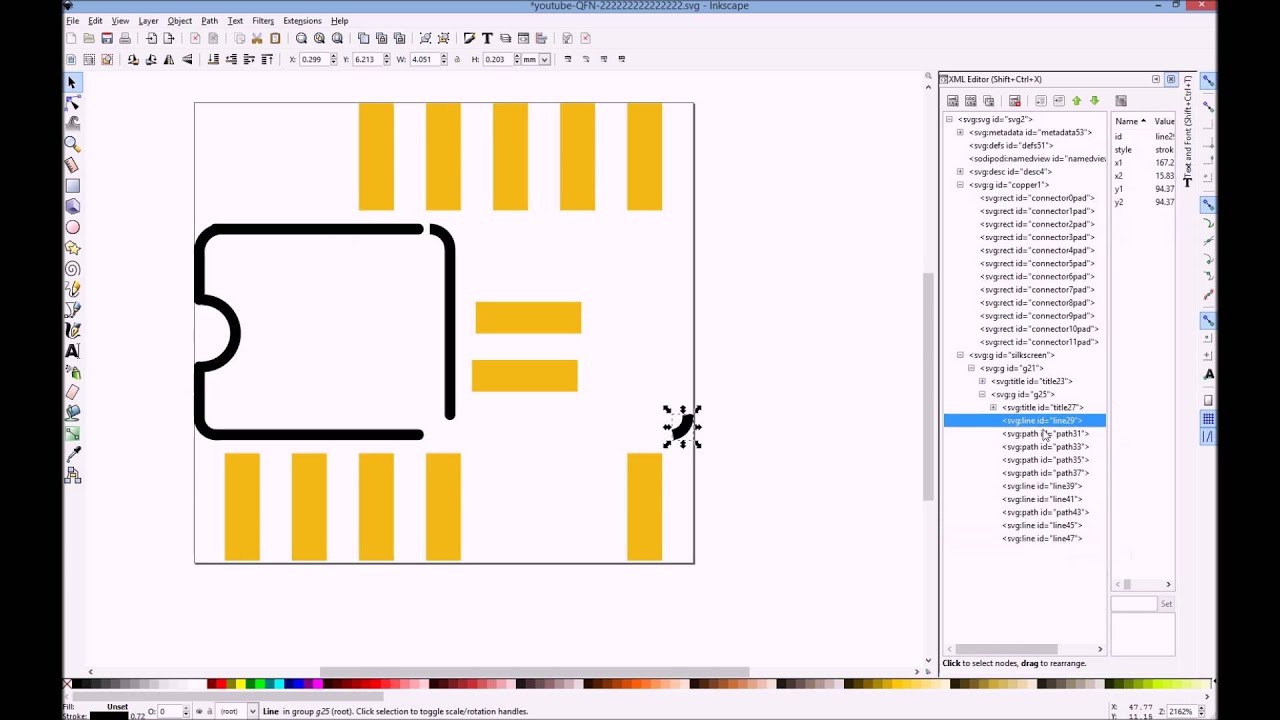

If you dont care for the silkscreen you could just try a basic 2 pin connector and see if that works. Otherwise save a 2 pin connector as a new part and edit the silk screen as needed. See attached video.

Cheers

3

Thank you :smile:i will give it a try
