Looking for a fritzing part - Sparkfun Qwiic Scale - NAU7802

parts help
1

Hi, good day everyone!

We are looking for a Fritzing part: Sparkfun Qwiic Scale - NAU7802. Below are the details of this part. If you have any resources, please share them with us. Thanks in advance!

Research done

  1. Searched for NAU7802 part on Fritzing forum - Not found.
  2. Searched for NAU7802 part on Fritzing application - Not found.
  3. Searched via search form on fritzing.org (“Go” in the top right area) - Not found.
  4. Searched via Google Search to check if there is any public resources about NAU7802 Fritzing part - Not found or at least not that I aware of.

Name of the part :red_exclamation_mark: : SparkFun Qwiic Scale - NAU7802

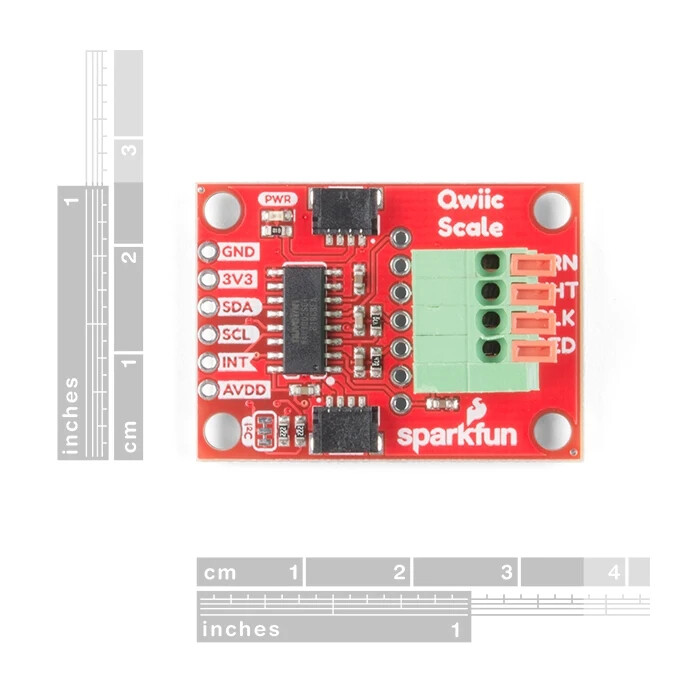

Top view❗

image700×700 69.3 KB

Datasheet❗

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

2

For what it’s worth, there is an Adafruit version of the NAU7802 with a Fritzing part. It has a different size and pin ordering though:

3

Hi @KjellM, Appreciate your prompt reply.

However, our project works specifically with Sparkfun NAU7802 instead of Adafruit NAU7802. Could we kindly request a fritzing part for NAU7802 but specifically on this Sparkfun version?

Thank you.

4

I assume, the aim is to plug this board onto some header?

5

@cskang0121 This will take a bit of time becasue there’s a part creation backlog

6

This might be usable as icon:

icon-NAU7802pcb

7

I’ll need to clean that up

1 Like
8

It is not to scale but a simple conversion of the picture.
