Looking For 4S 40A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit

4S 40A LiPo & Lion & 18650 BMS Battery Protective Balance Circuit

Hello Fritzing Community,

I am currently working on a project that involves the 4S BMS, and I am in need of its Fritzing part for my circuit schematics. I have searched through the Fritzing parts library and online repositories but have not been able to find the specific bms that l need.

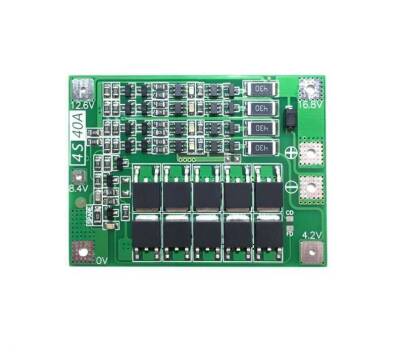

If anyone has created a 4S BMS part for Fritzing or knows where I can find one, your assistance would be greatly appreciated. I am specifically looking for a part that accurately represents the bms module which l added its photo to this post.

Thank you in advance for your help and support.

Not enough information to do anything with. Please fill in the template you obviously deleted (it is there for a reason!)

Peter

Hi Peter,

There is information here:

Technical Specifications

  • High current protection card

  • Continuous 40A current

  • PCB Size : 60x45mm

Top view
