Looking for 3.2A TTL (PWM) and Analogue Laser Diode Driver 12V (4W 450nm diodes)

parts help
1

Hi every one,
Can some body help me find a 3.2A TTL (PWM) and Analogue Laser Diode Driver 12V (4W 450nm diodes)

Name of the part
3.2A TTL (PWM) and Analogue Laser Diode Driver 12V (4W 450nm diodes)

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

Foto or vector

Slide93

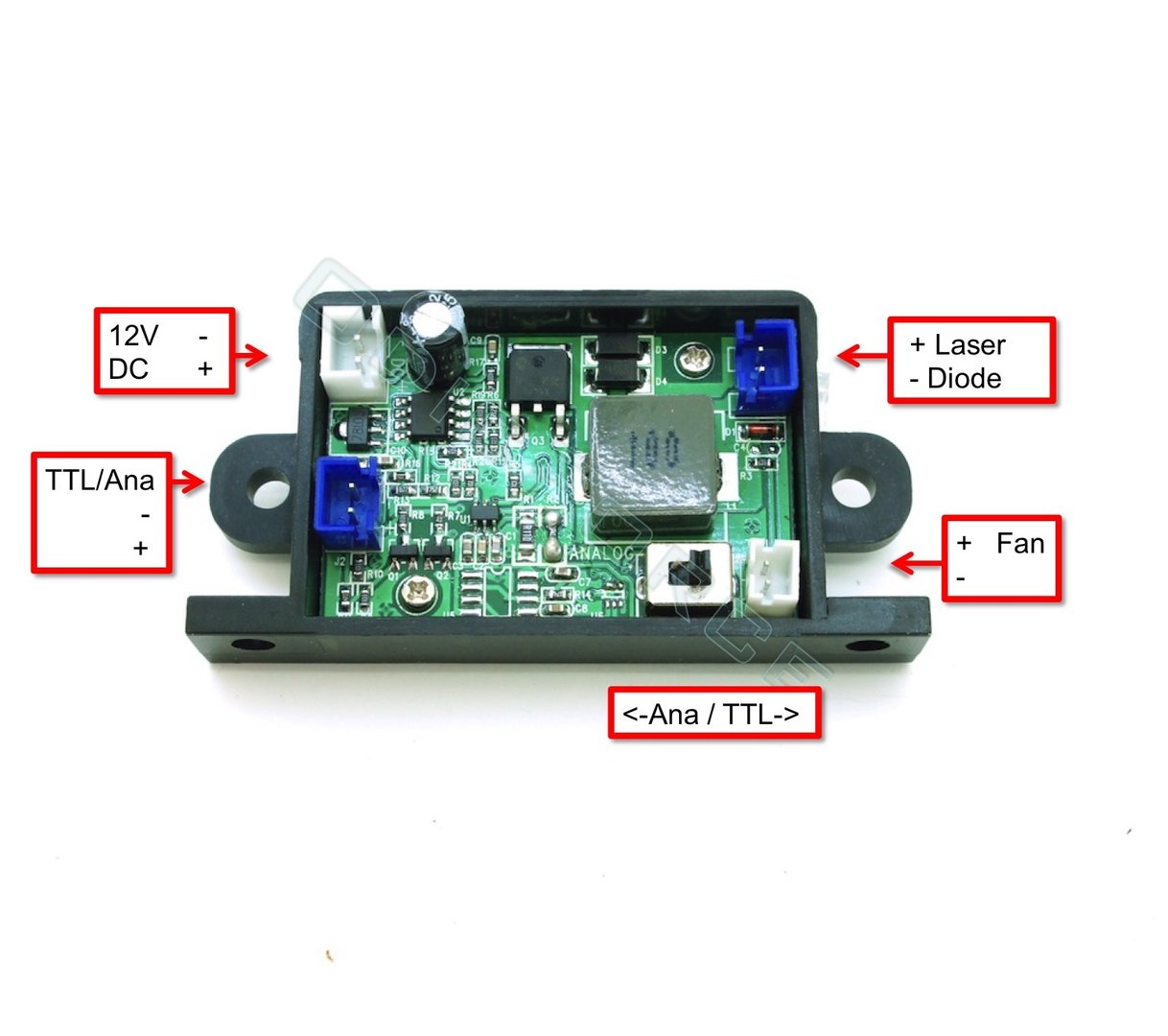

Slide931218×1080 105 KB

graphic, no links here please.

Datasheet
The official documentation of the part manufacture is linked here:

Please add a link to PDF of the manufacturers datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

2

Insufficient information to do anything with. We would need a website for the part with physical dimensions and the connector information (placement and what they do) to make a part. The web site appears to be here, but it also has no dimension information which is required to make a part (it does have connection information.) If you have on and can provide dimensions a part can be made.

Peter

3

This part should do what you want. Pcb view has been suppressed as not useful (you can’t mount this on a pcb.) The size is probably not correct but without pcb it won’t matter.

OFL432-2.fzpz (15.4 KB)

Peter
