Light Part Need Help

parts help
1

Lamp
Name

Like some LED

In case there are similar Fritzing parts, or you already started work, please link it here.

I need for 16 mm and 22 mm pleasee

This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

Foto or vector graphic, no links here please.

conclusion : how can i find a part that similar of those things?.. i need pilot lamp 220V AC in 16mm and 22mm…

and alsoo i need power supply from 220V AC to 5 DC
Please add a link to PDF of the manufacturers datasheet

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

2

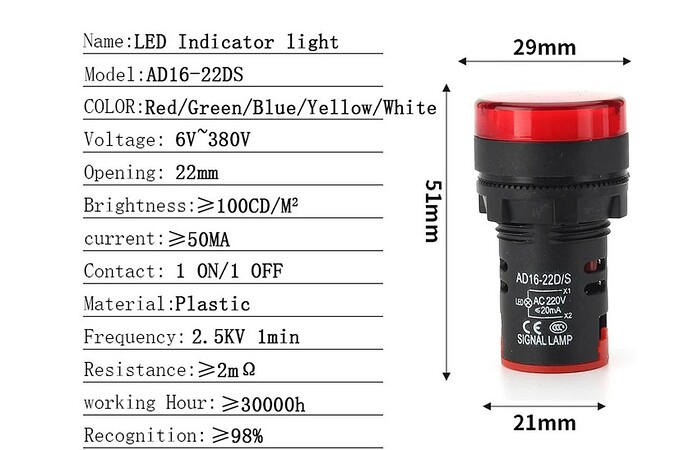

Pictures are basically useless for part creation. You need to supply a web site like this one:

which has data like this

capture
capture927×605 84.4 KB

which gives the dimensions and connector information for the part. That said here are the requested parts.

LED_indicator_16mm.fzpz (3.3 KB)

LED_indicator_22mm.fzpz (3.7 KB)

Peter

1 Like
3

Hiii Vanepp, so sorry for my mistaken, but Thankyouu so much for helping me, this is mean a lot to me, hope u have a nice day!
