LED keeps greying out

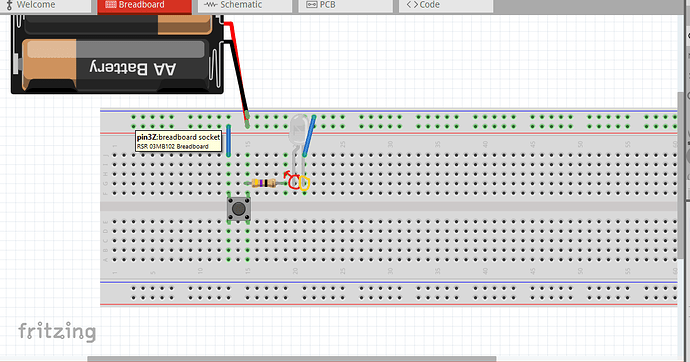

i dont why it keeps turning white? is it on? or am i doing something wrong?

You should upload your sketch (upload is 7th icon from the left in the reply menu, the sketch is the .fzz file) then tell us what you are doing and what you expect to happen.

Peter

1 Like

Most likely, the led you are using does not have spice information. To check this, select the led and check the spice field at the inspection pæne.

Change the led to one led of the core bin (or any other with spice info).

1 Like

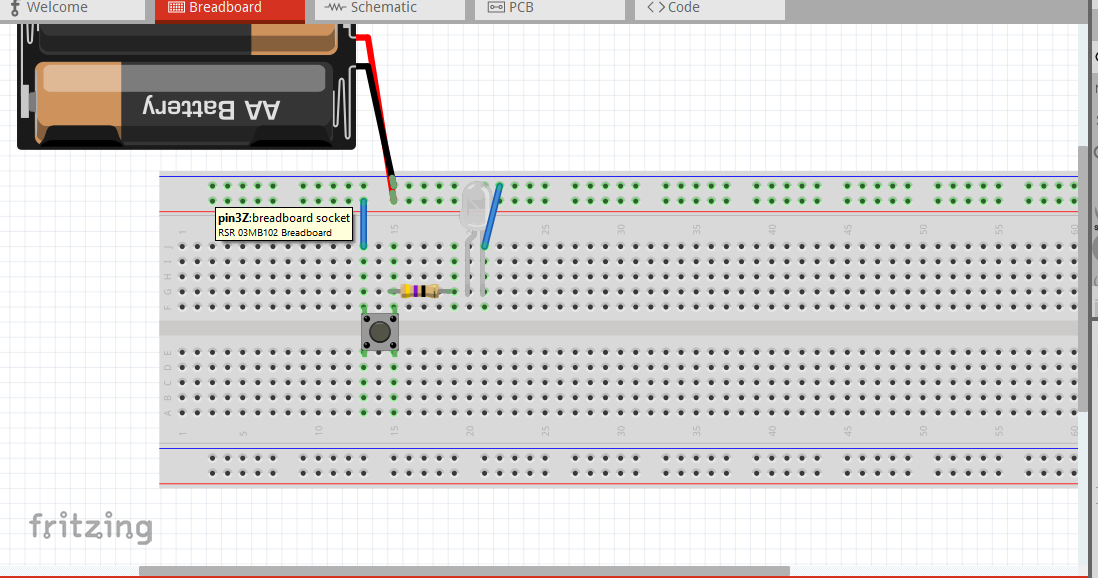

@EldritchWonder The main reason for this is that the LED is not connected properly.

Here’s a suggested fix

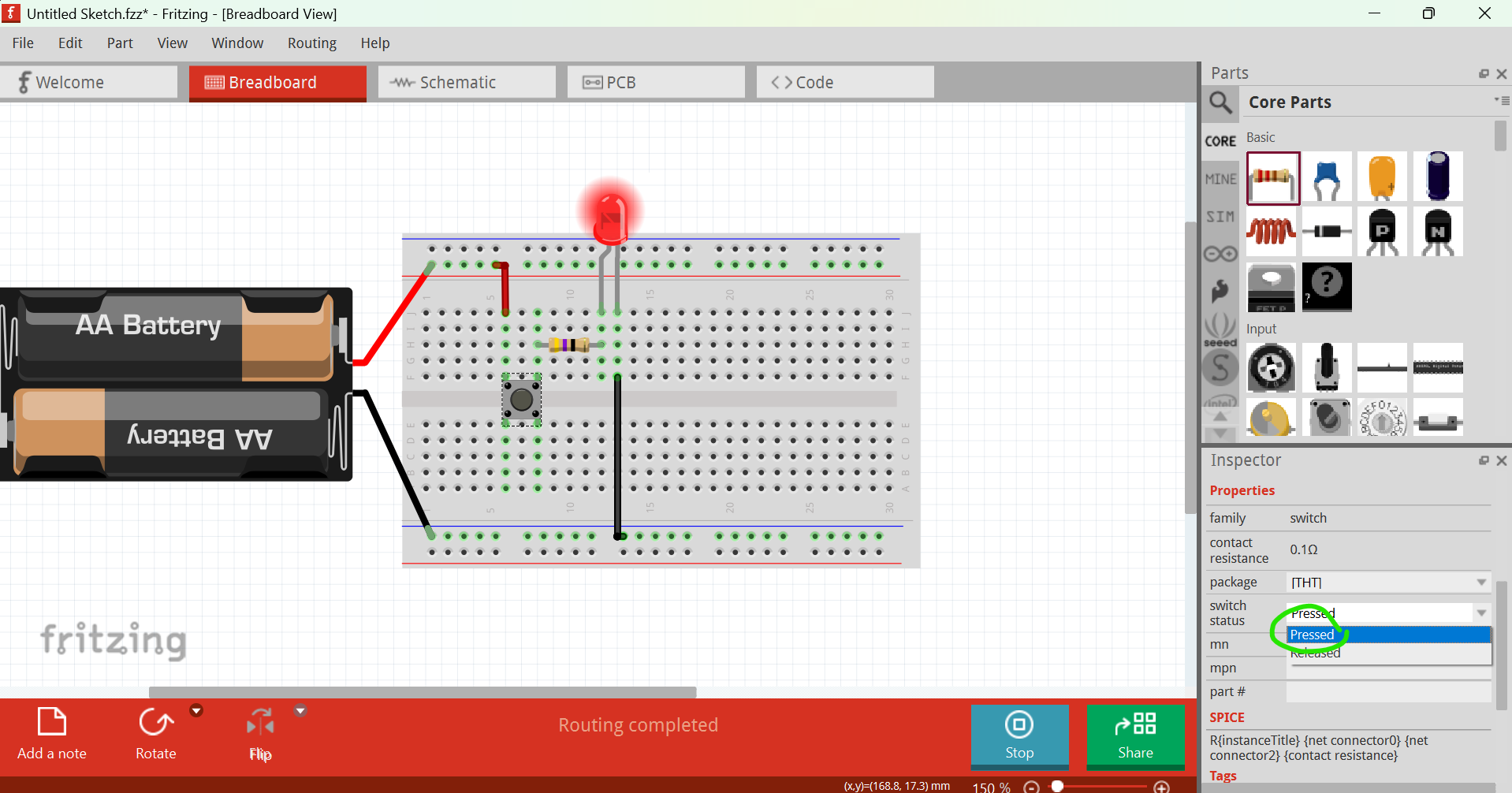

LED_Button_fixed.fzz (4.0 KB)

1 Like

Good catch. Not connected components are excluded from the simulation.

2 Likes
