LCD 1602 Keypad Shield for Arduino UNO / Mega Fritzing part

[DIYables]

Hello,

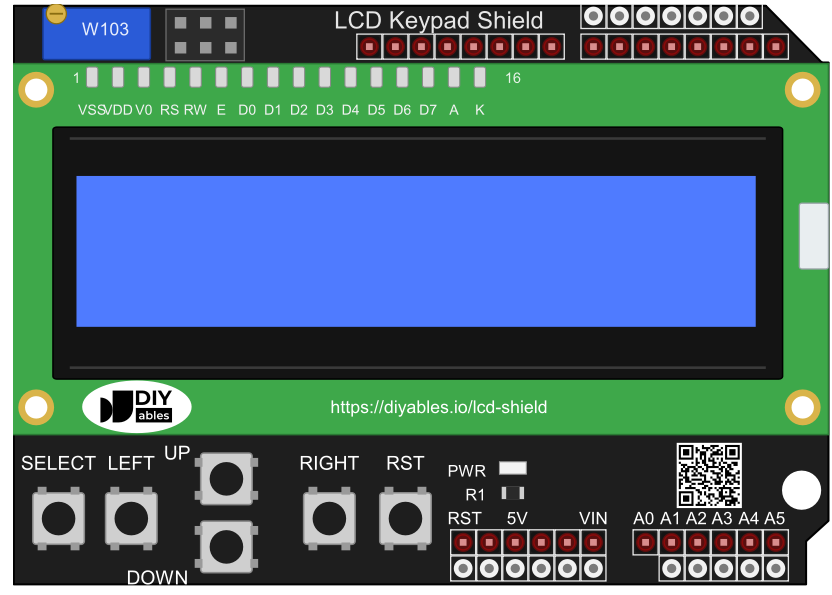

We would like to share the Fritzing part for DIYables LCD 1602 Keypad Shield for Arduino UNO / Mega.

You can download it here: DIYables LCD 1602 Keypad Shield for Arduino UNO / Mega Fritzing Part — Import into Fritzing to draw wiring diagrams and breadboard layouts with this board

Or download from the product pages:

• LCD 1602 Keypad Shield for Arduino UNO Mega
