Hi,
in my project I want to know, whether the flap is open or closed.
Therefore I need a Hall effect Sensor and I want to work with the declared board.
But I didn’t find a *.fzpz part for this board: KY-024 - Linear Magnetic Hall effect Sensor Module (AZ-Delivery).
Can you help me?
Thanks
Alex
@Alex_F why did u delete the template
what even is that part? Website to seller
According to the AZ-Delivery datasheet, they used a file like this for the description. So it must exist.
I’ll ask AZ-Delivery about it, or keep looking.
Regards, Harald!
Hi @Harald_Rau Well it looks a bit… welk low qualoty. amd if you look closely, it could be a raster image with headers superimposed
Can you also send me the az delivery website?
@Harald_Rau @Alex_F Is it this website
Yes, exactly. That’s the part…
So, I found a part here. It did produce an error when importing, but maybe it can be repaired.
KY-024 Linear Hall Magnetic Sensor Module.fzpz (34,1 KB)

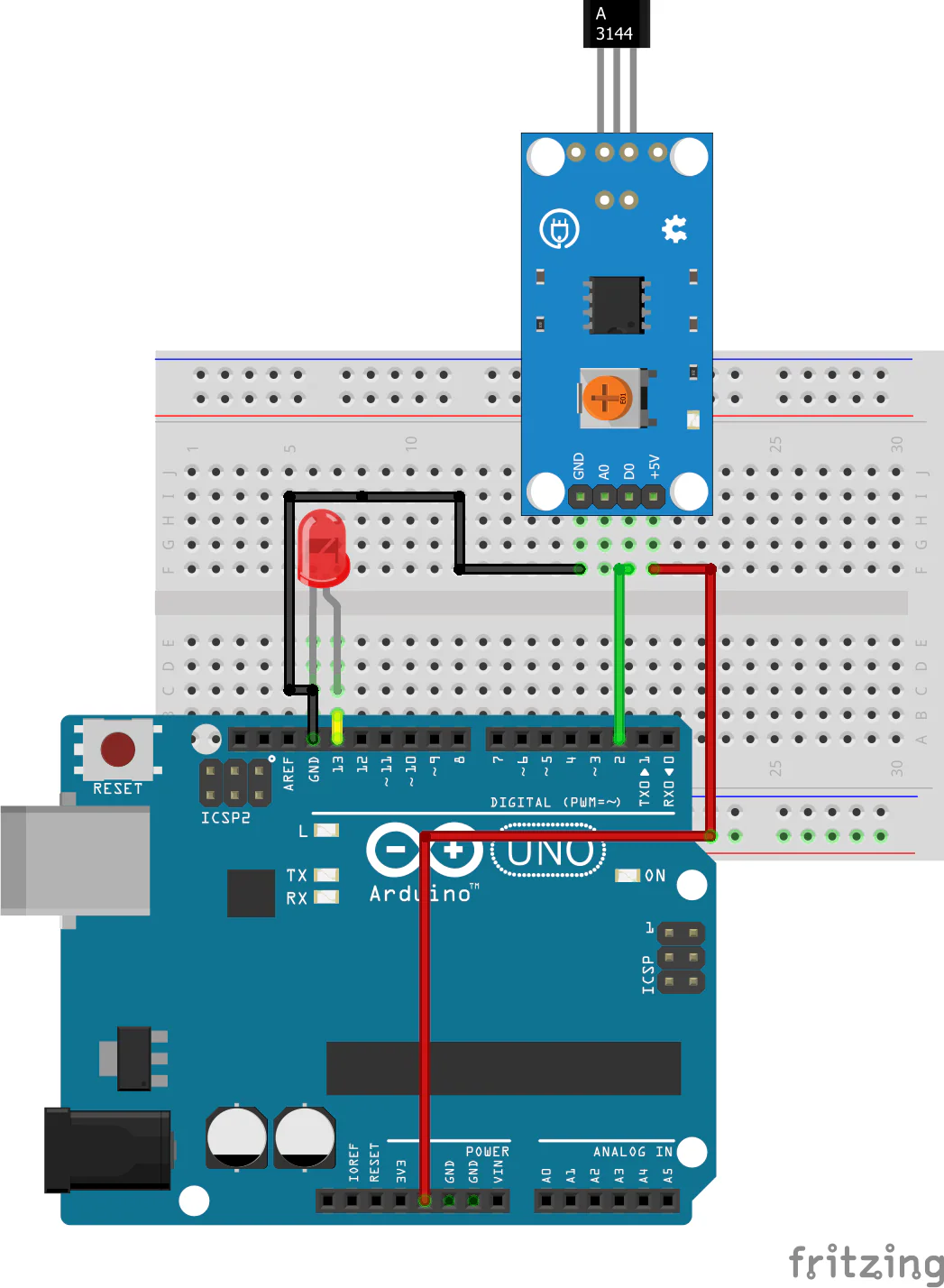

Beispiel.fzz (36,5 KB)
Regards, Harald!
Ok @Harald_Rau I’ll just redraw it from scratch… Too hard to fix
I was able to fix the error. I just had to extend the entry in the fzp file by
<module fritzingVersion=“0.9.3b”…
extend it. Now you can import the part, or did it have any other errors?
KY-024.fzpz (40,7 KB)
Should I take another closer look at the SVG files?
Regards, Harald!
Hello Harald,
great support, thanks.
That’s exactly the part I searched for.
I put it in my project and now I’m able to go forward.
Kindly regards
Alex
