Name of the part
KCX_BT_EMITTER v1.7
Previous work, similar parts
None that has the same amout of I/Os that I could find.

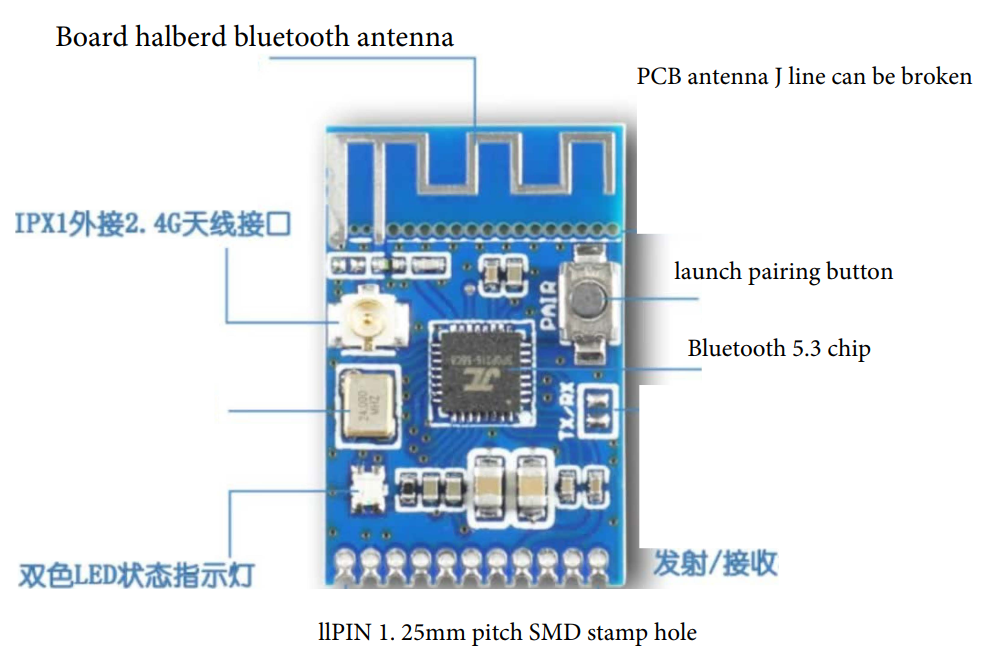

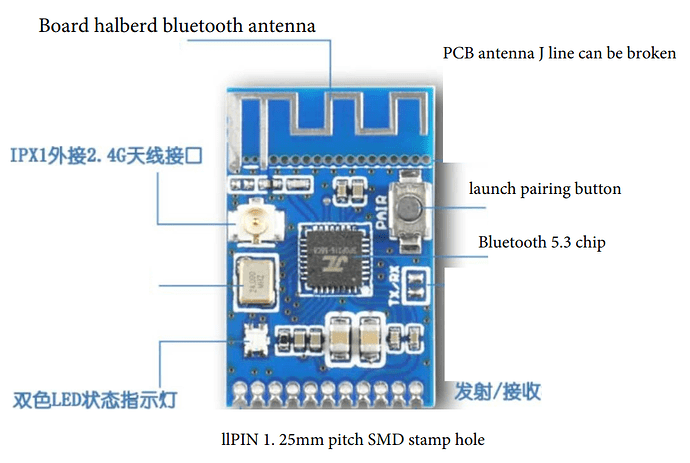

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.
Datasheet
The official documentation of the part manufacture is linked here:
https://www.electro-tech-online.com/attachments/kcx_bt_emitter-english-pdf.140121/
