Hi everyone,
Anyone can please help me to create this part. All the datasheet can be refer on the main website page. Refer link below.
Thank you.
You need to specify whether you want form C or form A contacts as the two are different.
Peter
Hi vanepp
Sorry for missed information. I need the Form C which is have 5 pin terminal.
This part should do what you want. Before ordering boards print the pcb footprint out at 1:1 scale (the default) and compare it to a real part. The holes are set to 0.055in (~1.4mm.)
edit:
Deleted as the pins appear to be backwards. See the corrected part below.
Peter
1 Like
Hi everyone,
I have tested the component and seems like the position of NC and NO is wrong.
Here I attached new fixed one.
JQC-T78-DC12V-C relay_fixed.fzpz (5.8 KB)

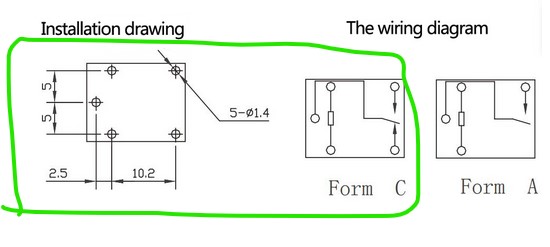

Seems odd, but the data sheet does not say what the alignment is so it is possible to be backwareds:
Note indication of top or bottom so I assumed the standard top view. If it is in fact bottom view (which it could be) the pins will be wrong. I will delete the original part to avoid confusion.
Peter
