Is there a Fritzing part for a 14-pin ZIF socket? It has two seven pin rows, with 100 mil pin spacing in each row . The item is shown below in two views

parts help
1

Name of the part
14-Pin ZIF Socket

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.

Top view

**Bottom View Showing Pins


Datasheet
The official documentation of the part manufacture is linked here:

Please add a link to PDF of the manufacturers datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
[x ] Other (please specifiy)

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

2

It doesn’t appear so. A google search of the form “fritzing part 14 pin zif socket” turns up parts for 28 and 40 pin sockets but no 14pin socket. Many of the 40pin zifs will do both 0.6in and 0.3in spacing although I don’t know if the available parts do that.

Peter

3

Thank you Peter. Did I send enough information for you to make a Fritzing part for this 14-pin ZIF socket?

4

A generic IC will make an identical part to the two ZIF sockets in core parts. Their breadboard view is an IC. So I don’t see any need of a new part as the tools are there to make a new one.

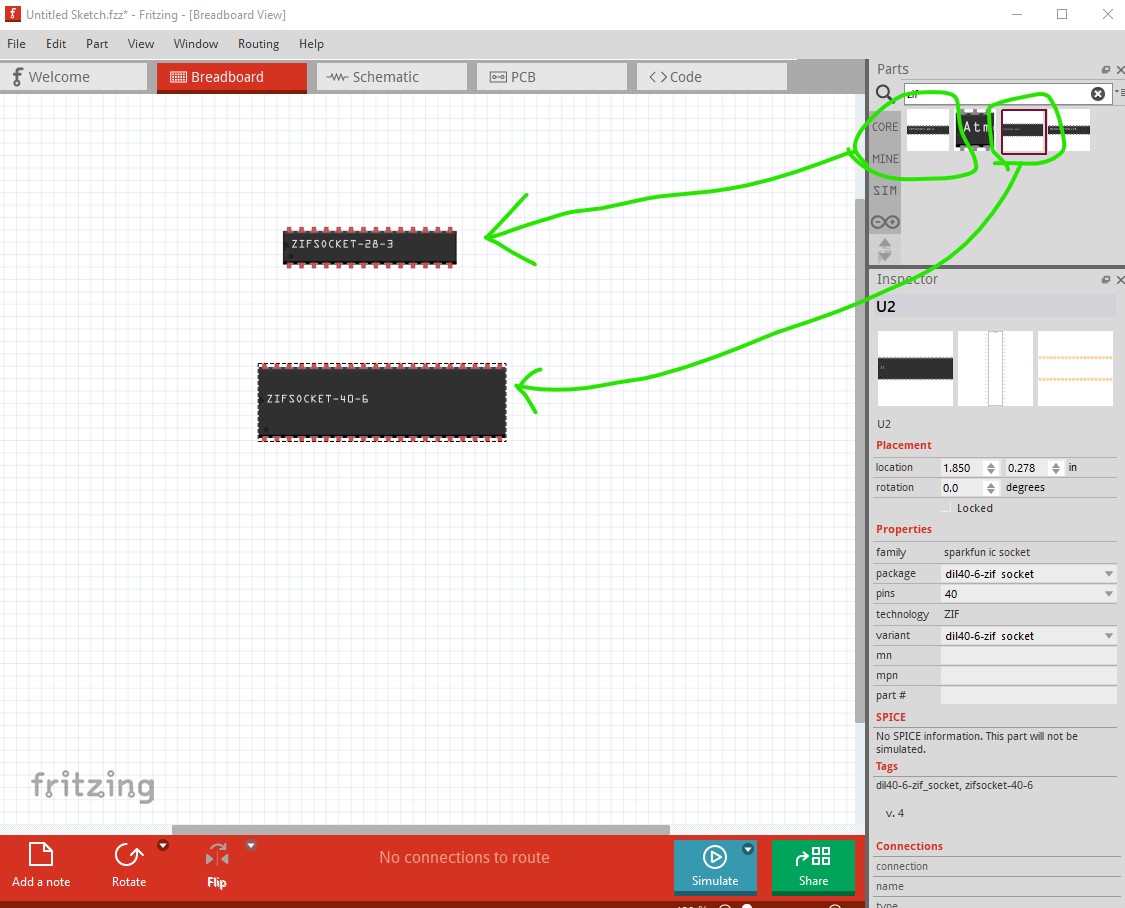

capture
capture1125×908 172 KB

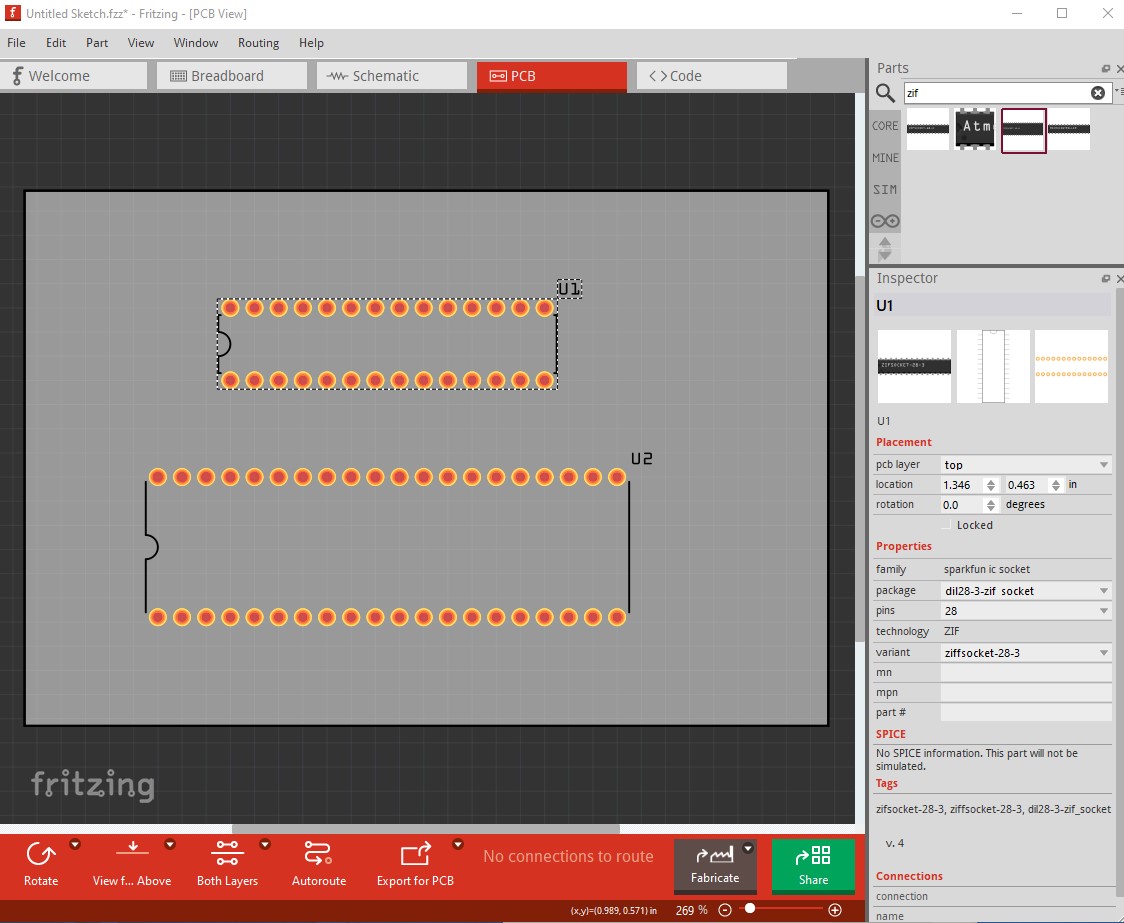

capture1
capture11127×914 164 KB

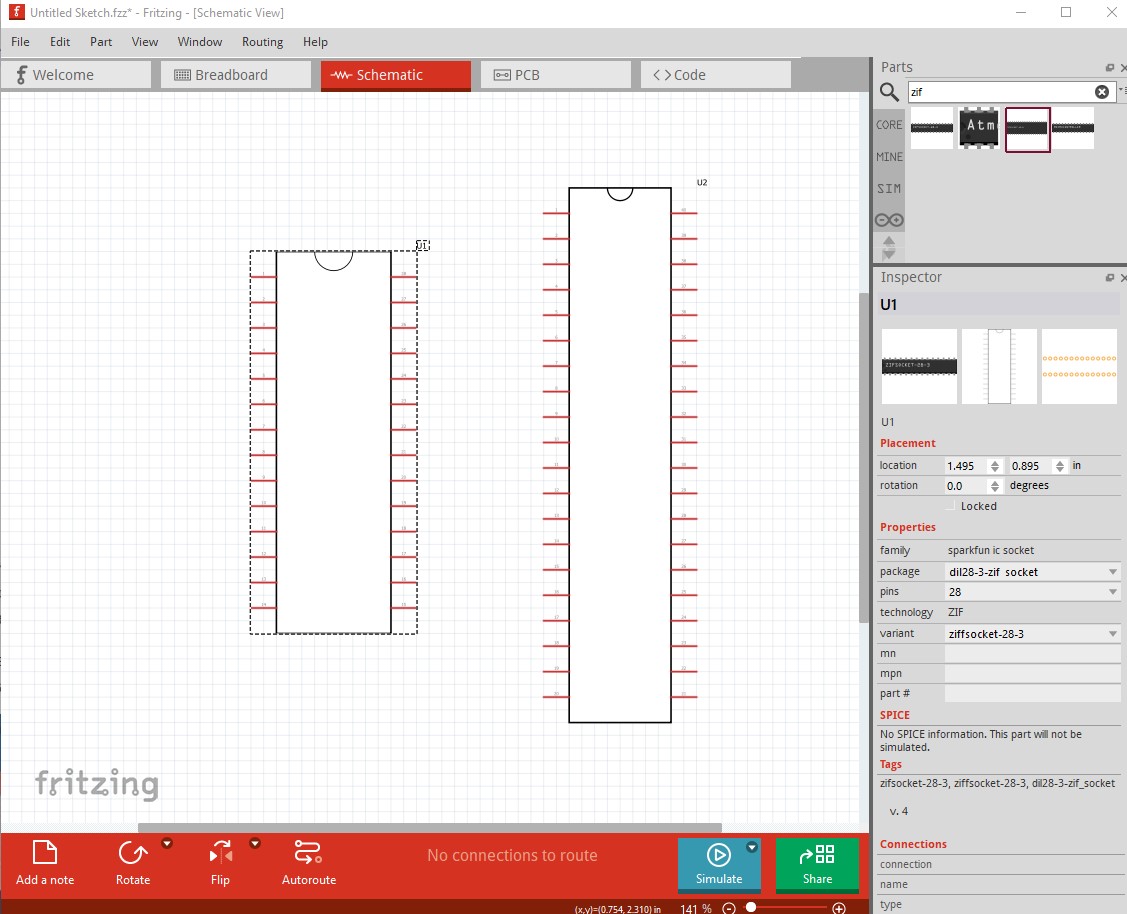

capture2
capture21124×923 144 KB

pcb would be most of the reason to make a new part, and it is no different than the standard IC. So a 14 pin generic IC should do what you want.

Peter

5

Thank you Peter. I can use the IC Dip sockets.
