INA226 I2C DC Current and Voltage meter 20A Module


Any chance anyone has made this version of the INA226 with the built-in shut resistor? I have made a solar project using a few of these to monitor the current and voltages and people are asking me to make a guide how to build the project and i would like to have these in the wiring diagram…

The pdf with all the specs can be found here:

This is a link to another version as well

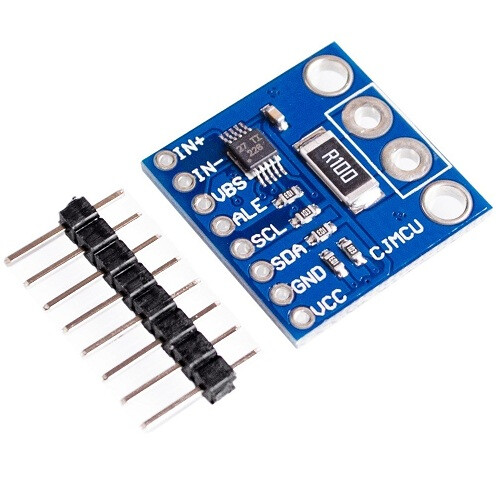

This part should do what you want.

INA226.fzpz (12.4 KB)


1 Like

Thanks again Peter!

Here is the results
