I need a FlyBack Diode

parts help
1

Name of the part
UF4007 Ultra-Fast Recovery Diode

Previous work, similar parts
This part is similar to:

  • 1N4007 (standard rectifier diode, DO-41)
  • 1N5819 (Schottky diode, DO-41)
    Use any existing DO-41 axial diode part in Fritzing as a base. No prior custom work started yet.
  • Body length: ~4.5 mm
  • Pin spacing (lead to lead): ~10 mm typical

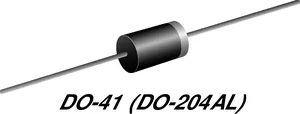

  • Package: DO-41 axial lead diode
  • Cathode side is marked with a silver band

Datasheet

Type
Diode (D)

Footprint
DO-41
Axial leaded package (same as 1N4007, 1N5819, etc.)

Top View

2

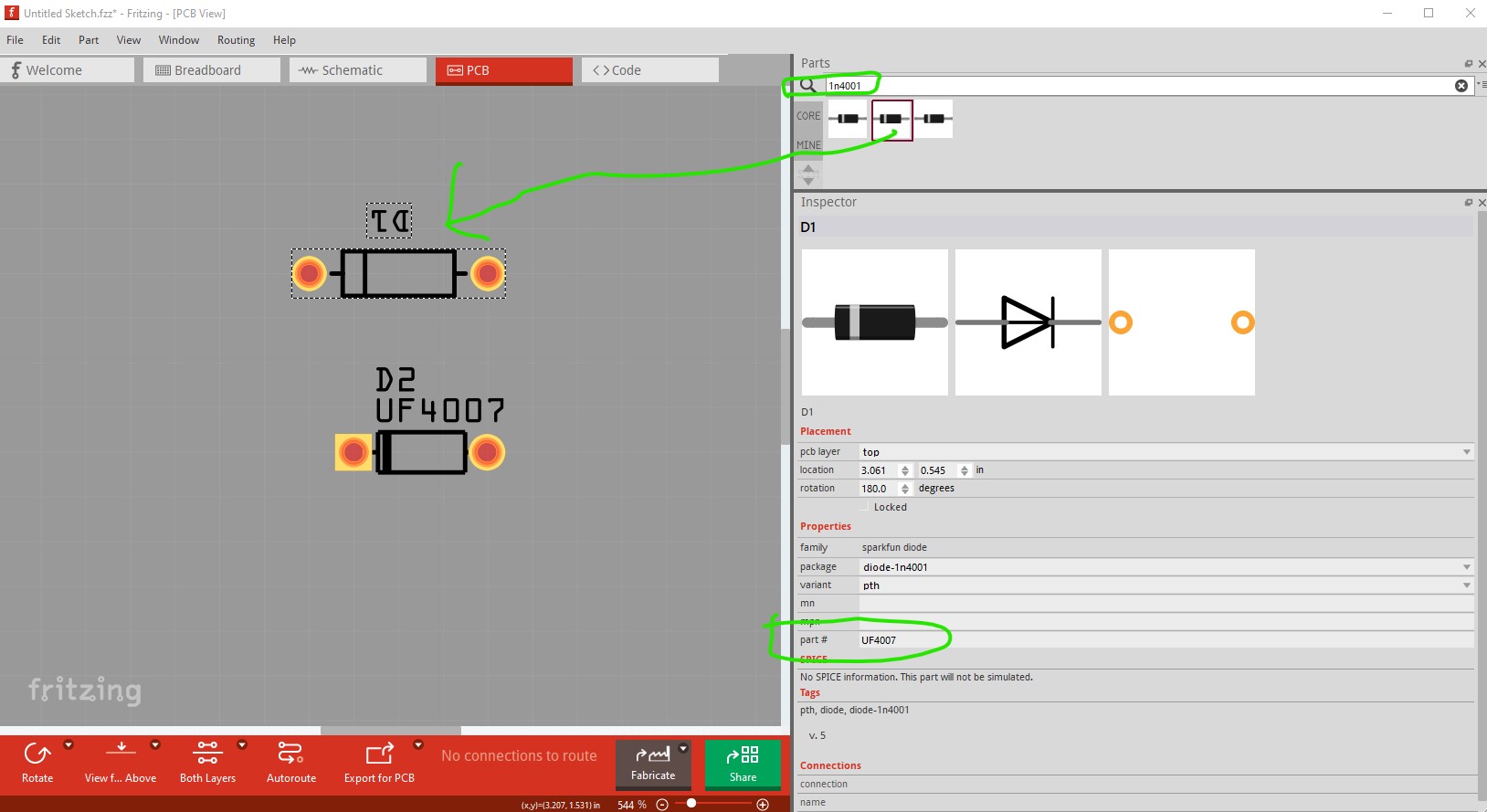

Already available. Either the core parts 1n4001 or if you need more space the Sparkfun 1n4001 from here

capture
capture1628×889 132 KB

should do you. You can change the part number in Inspector to be UF4007 as I have done here.

edit:

either should fit the pcb hole sizes are

0.042in for the core parts 1n4001

and

0.0393in for the Sparkfun part

and the diode lead is 0.0338 in max which should fit either diode. As I recall there are also custom parts for the 1n4001 (a google or forum search for 1n4001 should find them) in various lengths.

Peter

3

ahh thank you so much !!
