I’m looking for the USB Host Shield 2.0 and Mini

parts help
1

Name of the part❗
USB Host Shield 2.0
USB Host Shield Mini

Your previous work, similar parts
similar parts with :
USB Host Shield 2.0 = Arduino Uno
USB Host Shield Mini = Arduino Pro Mini

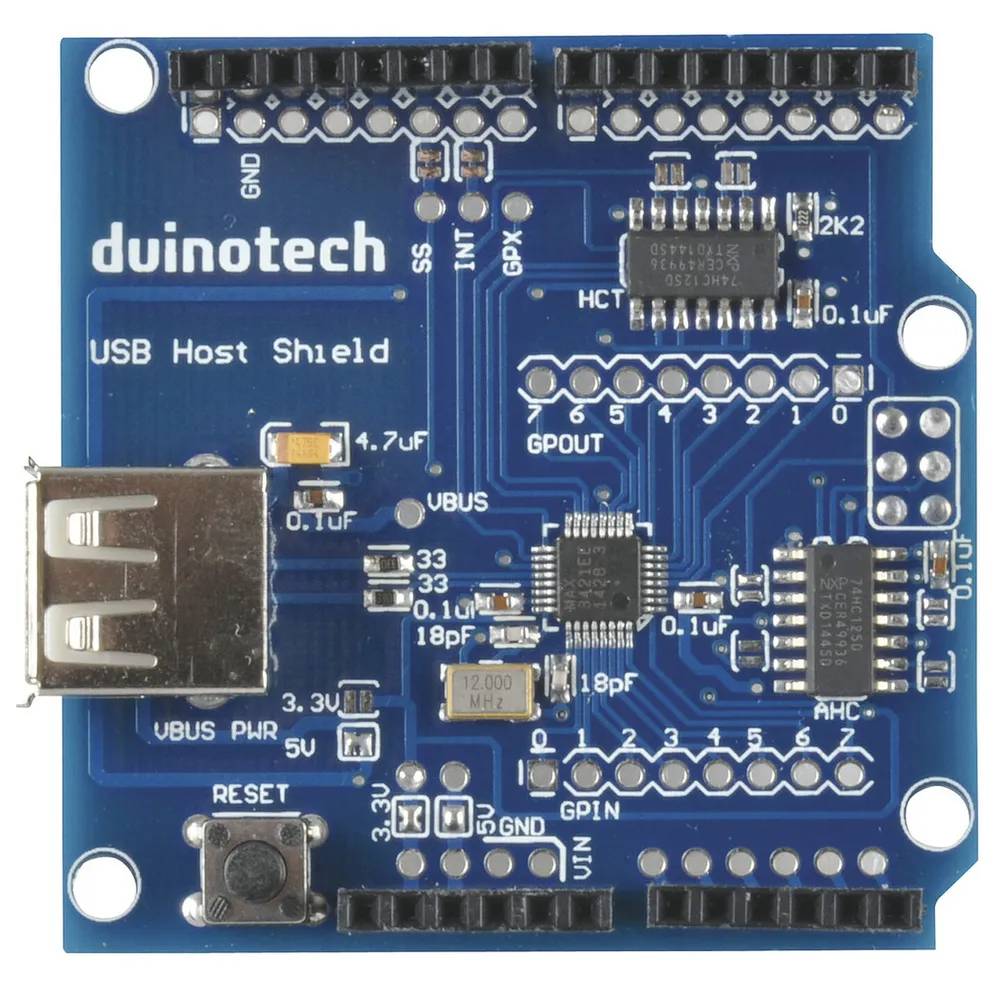

Top view❗

usb host shield reguler (1)
usb host shield reguler (1)1000×1000 126 KB

Datasheet❗
USB Host Shield 2.0 : https://www.arduino.cc/en/uploads/Main/USBHostShield-Rev2.pdf
USB Host Shield Mini : sorry cant find, maybe this help https://www.analog.com/media/en/technical-documentation/data-sheets/max3421e.pdf

Footprint
similar footprint with :
USB Host Shield 2.0 = Arduino Uno
USB Host Shield Mini = Arduino Pro Mini

Type
Shield for Arduino

I have searched on forums and Google, but I couldn’t find it. Maybe someone has it and wants to share it.

2

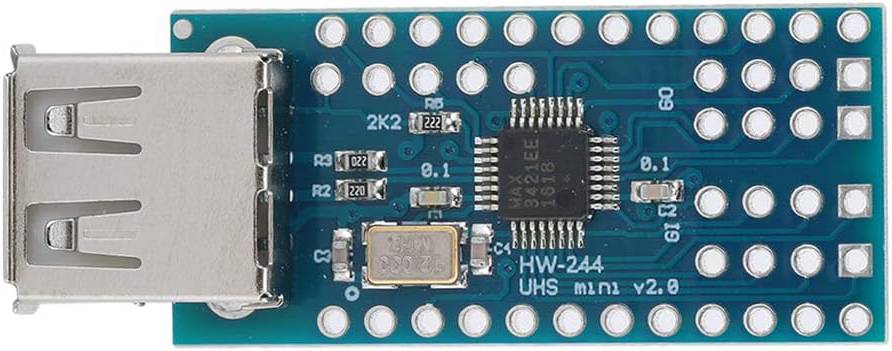

Image for USB Host Shield Mini

usb host shield mini
usb host shield mini892×351 52.1 KB

3

Insufficient information for either part. We need a web site that provides the physical dimensions of the part and a pinout list that provides names and locations for all the connections to make a part (images from the top and flat as you have provided are also useful when making a part but without the dimensions and pinouts not much can be done.)

Peter
