How do I connect a wire to another wire at any point? it only lets me connect wires directly to pins of components, but for me, for intelligibility it is important to form T-junctions and stuff like that where ever i want.

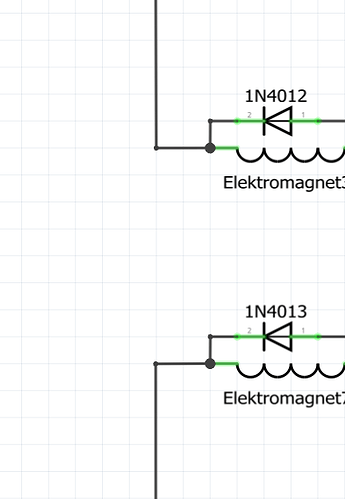

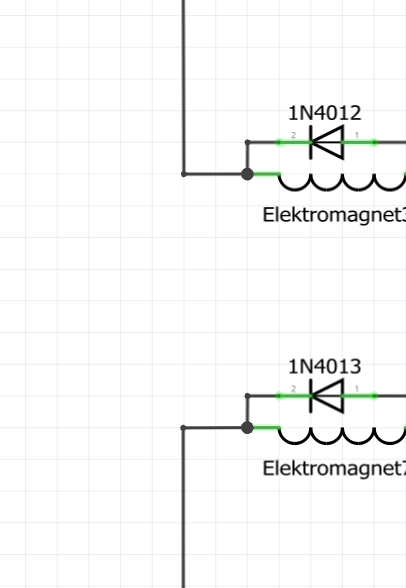

For example: How do I connect these two wires at their bend points?
Thank you guys very much,
Ruben
Double click on a schematic line to create a big dot, kind of a bend joint but where you can connect other connections (wires). If you want to remove it, double click on the big dot.
Hi Ruben,
if you click on pin 1 of the component 1N4013 (1 turns blue) and then drag to any “bend point” of the wire, you can make a connection.
Best regards, Harald!
