Please edit this message to let us know exactly what electronic part we are talking about. Creating parts is some work, so please be considerate and make it easy for us.
We need the title, an image and the technical data, fields are marked with a
. Without this infomation, the part can not be created.
Search the part prepare before posting.
You can search for the part here:
Top right here on this page- Top right in Fritzing Application
- With the search form on fritzing.org (“Go” in the top right area)
- Appending the terms “fritzing part” in your favorite search engine
Grove - Vibration Motor
Your previous work, similar parts
I have not created a Fritzing part for this module before.
However, similar Grove modules exist, such as:
- Grove – Mini Vibration Motor
- Grove – Servo
- Grove – DC Motor Driver
These can be used as references for connector placement and Grove-style dimensions.

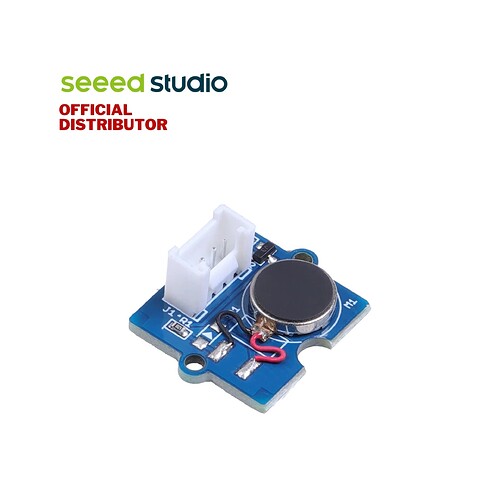

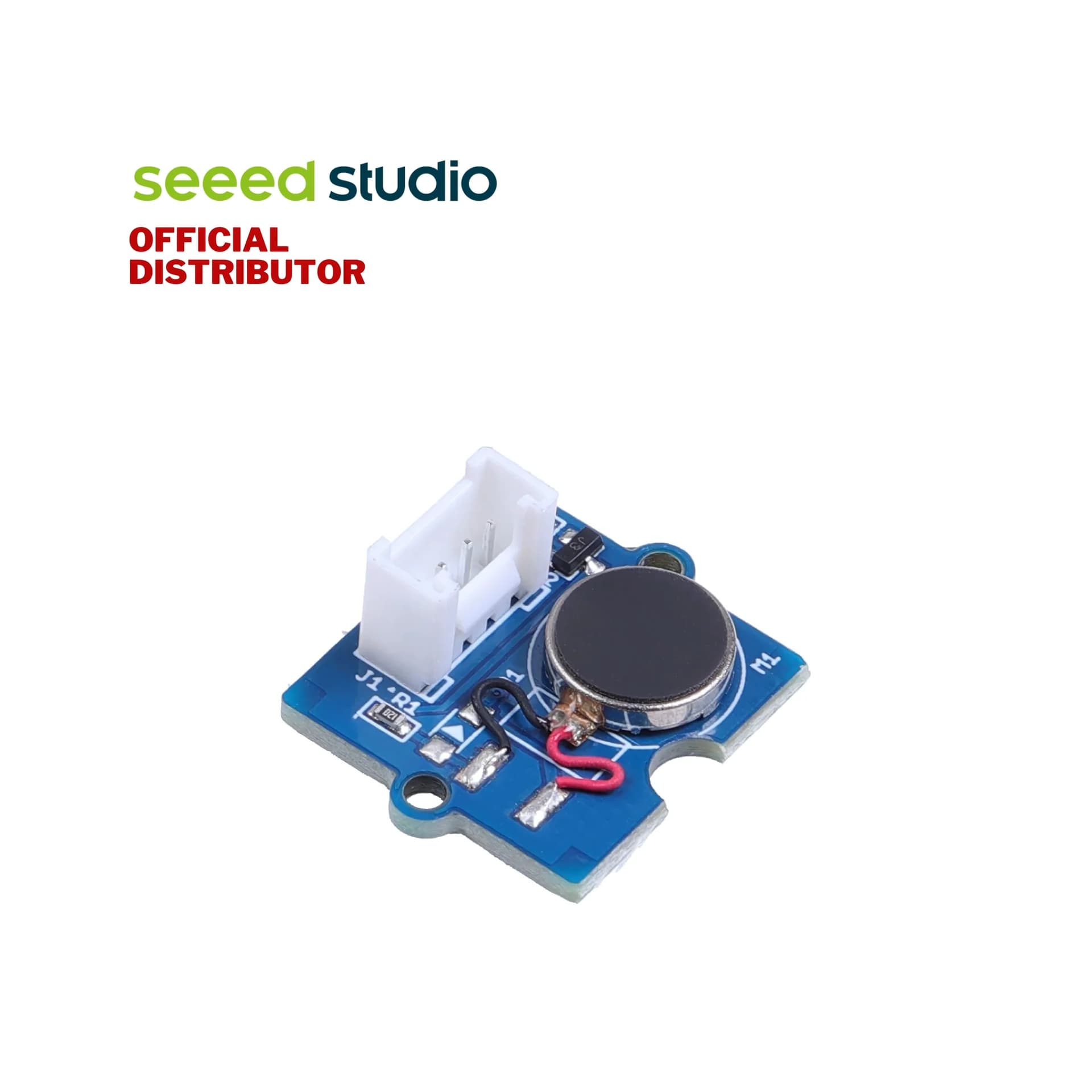

Top view❗
Here’s a description of what to capture:
- The board’s top surface, showing the Grove connector (4-pin) and the coin-type motor mounted underneath or to the side.
- Dimensions marked: 24 mm × 20 mm × 9.8 mm.
- The motor label, board silkscreen, polarity of the connector, etc.
Datasheet❗
Official documentation links:
- Makerlab product page:Grove - Vibration Motor – Makerlab Electronics
- Specifications (from listing): Operating Voltage 3.0 V-5.5 V, rated speed 9000 rpm, dimensions 24×20×9.8 mm.
- Under “Documents” on product page there is a schematic and datasheet references (S9013, ANDA-B1020)
Footprint
- The module is a Grove-compatible board, not a discrete component.
- Board dimensions: ≈ 24 mm × 20 mm × 9.8 mm.
-
- Connector: 4-pin Grove interface (JST-type or similar), plug-and-play.
- Mounting: likely two mounting holes or adhesive area (but check actual board if you need holes).
- Because it’s a module, you don’t need a standard SMD footprint like SOT23; just treat it as “module board – Grove form”.
Type
Breakout board, sub assembly, plug in module (A)
