Hello,
We would like to share the Fritzing part for DIYables Screw Terminal Block for Arduino UNO.
You can download them here — Import into Fritzing to draw wiring diagrams and breadboard layouts with this board:
- DIYables Screw Terminal Block for Arduino UNO (both pieces) Fritzing Part
- DIYables Screw Terminal Block for Arduino UNO - Digital Fritzing Part
- DIYables Screw Terminal Block for Arduino UNO - Power + Analog Fritzing Part

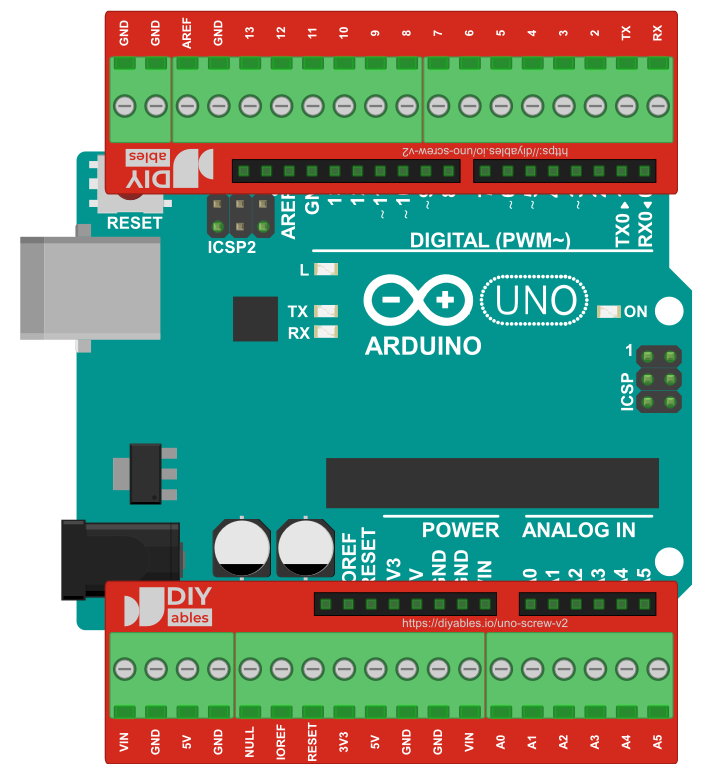

The header pins sit at the UNO pin positions: drop a part on an Arduino UNO in the breadboard view and it connects.
Or download from the product pages:
