Force sensor HONEYWELL FSG020WNPB

1

Hi, I am looking for model of HONEYWELL FSG020WNPB
FSG005WNPB-1_p
Like the one in the picture or link.
https://www.tti.com/content/ttiinc/en/apps/part-detail.html?partsNumber=FSG020WNPB&mfgShortname=HON&utm=PNC2024&gad_source=1&gclid=Cj0KCQjw0MexBhD3ARIsAEI3WHJD8OSOTbDujpAOlrYUYoD43QDY-UCS2CzIdfIpbLK7zMnoiAnS24saAmhKEALw_wcB

2

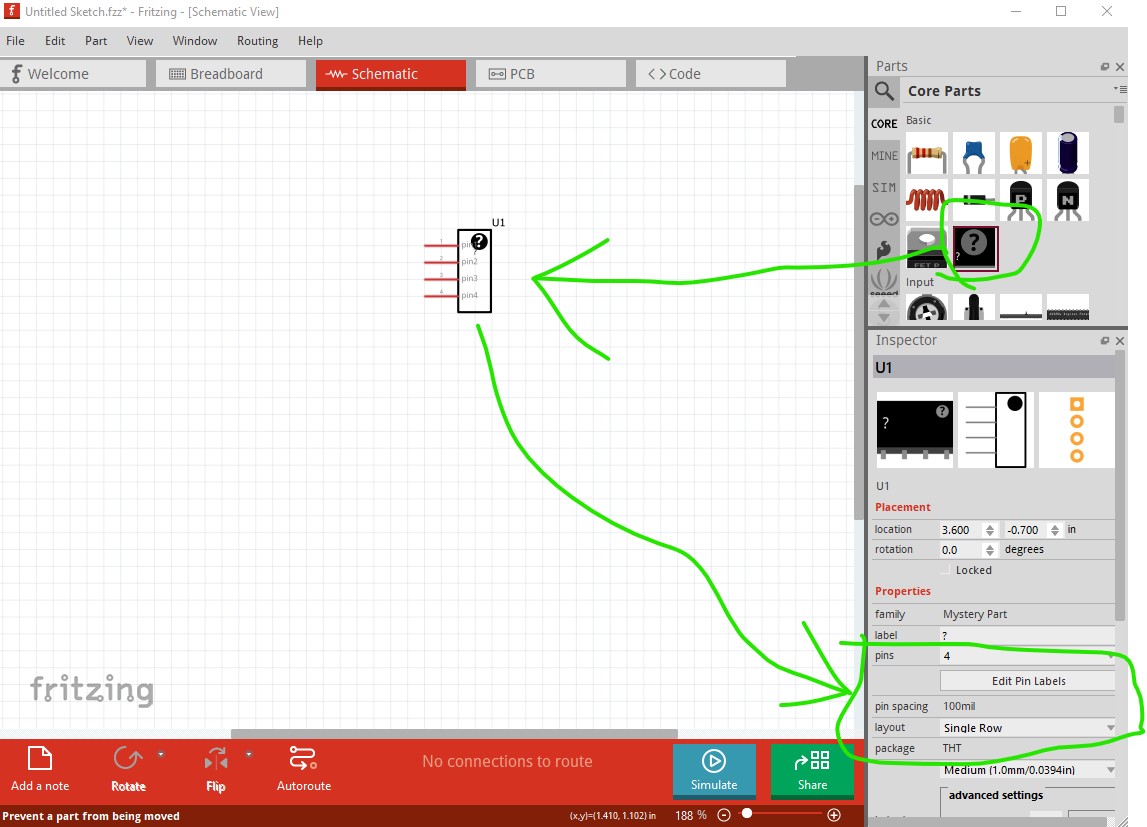

The mystery part in core parts should do what you want. There doesn’t appear to be a custom part for this device.

capture
capture1147×827 154 KB

You need to change the number of pins to 4 and probably edit the pin labels in Inspector but that should work.

Peter

1 Like
