Finding for 2p mini circuit breaker (MCB)

DANNY_LEE · April 23, 2025, 9:37am

I need the fzpz file of the 2p mini circuit breaker (MCB)
I specified below. I’ll be happy if you can help me. Thank you.
2p mcb
https://www.se.com/hk/en/product/A9N61534/miniature-circuit-breaker-mcb-acti9-c60hdc-2p-30a-c-curve-6ka-iec-en-609472/

RAPTOR7762 · April 23, 2025, 10:36am

(post deleted by author)

DANNY_LEE · April 23, 2025, 12:54pm

Which connector?
I need the double pole MCB, one pole connect the live wire another connect the neutral wire

RAPTOR7762 · April 23, 2025, 12:57pm

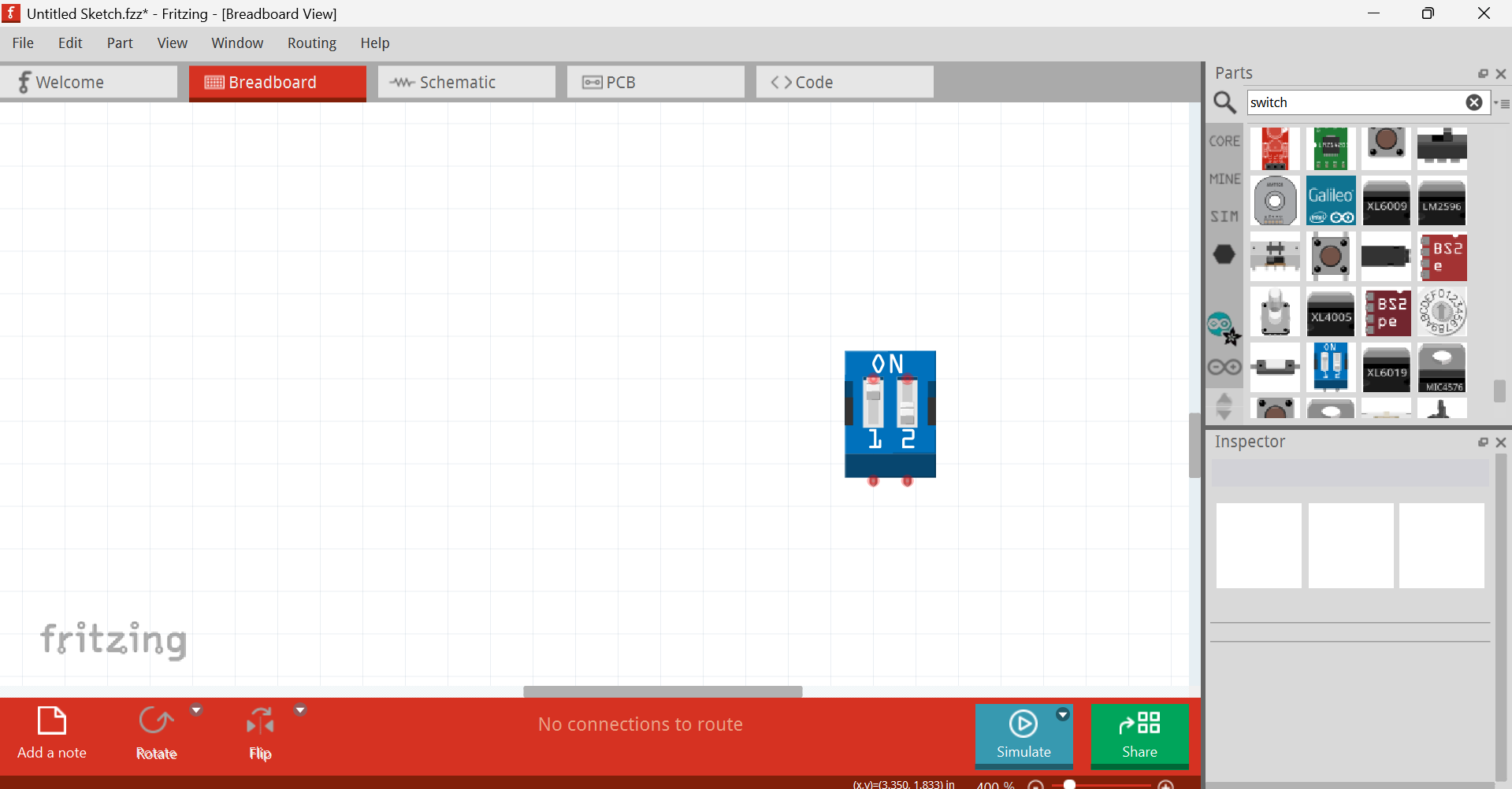

Then the switch here (search in Fritzing and look for this part) should do what you want

DANNY_LEE · April 23, 2025, 1:06pm

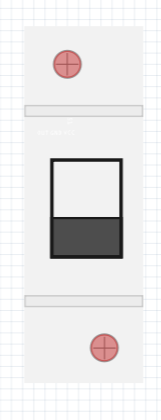

1P circuit breaker

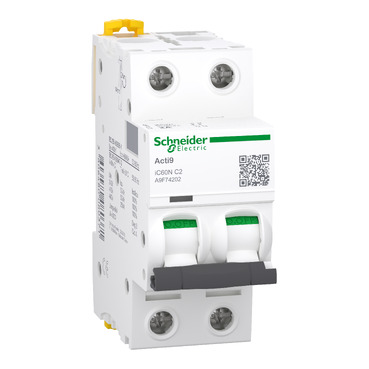

I am looking for circuit breaker which looks like this but two pole

RAPTOR7762 · April 23, 2025, 1:08pm

Please attatchthis Fritzing Part

DANNY_LEE · April 23, 2025, 1:12pm

DANNY_LEE · April 24, 2025, 4:01am

RAPTOR7762 · April 24, 2025, 9:18am

This should be the part you want

As usual, please ignore the PCB

DANNY_LEE · April 24, 2025, 11:14am

Thank you very much!!!
