Ethernet Module W5100 mini

Jun 2017, by @studiociodo

Ethernet Module W5100 mini
W5100 mini.fzpz (21.6 KB)
i have modified the standard module in fritzing and create module w5100 mini that is easily find on ebay orbangood .
this is my first part…so if you have suggestion please upgrade that…

9 days later


i try to make it double face xml., but in this mode i can’t get correct message when i import that in fritzing.what is wrong?help please.
i attach svg here:

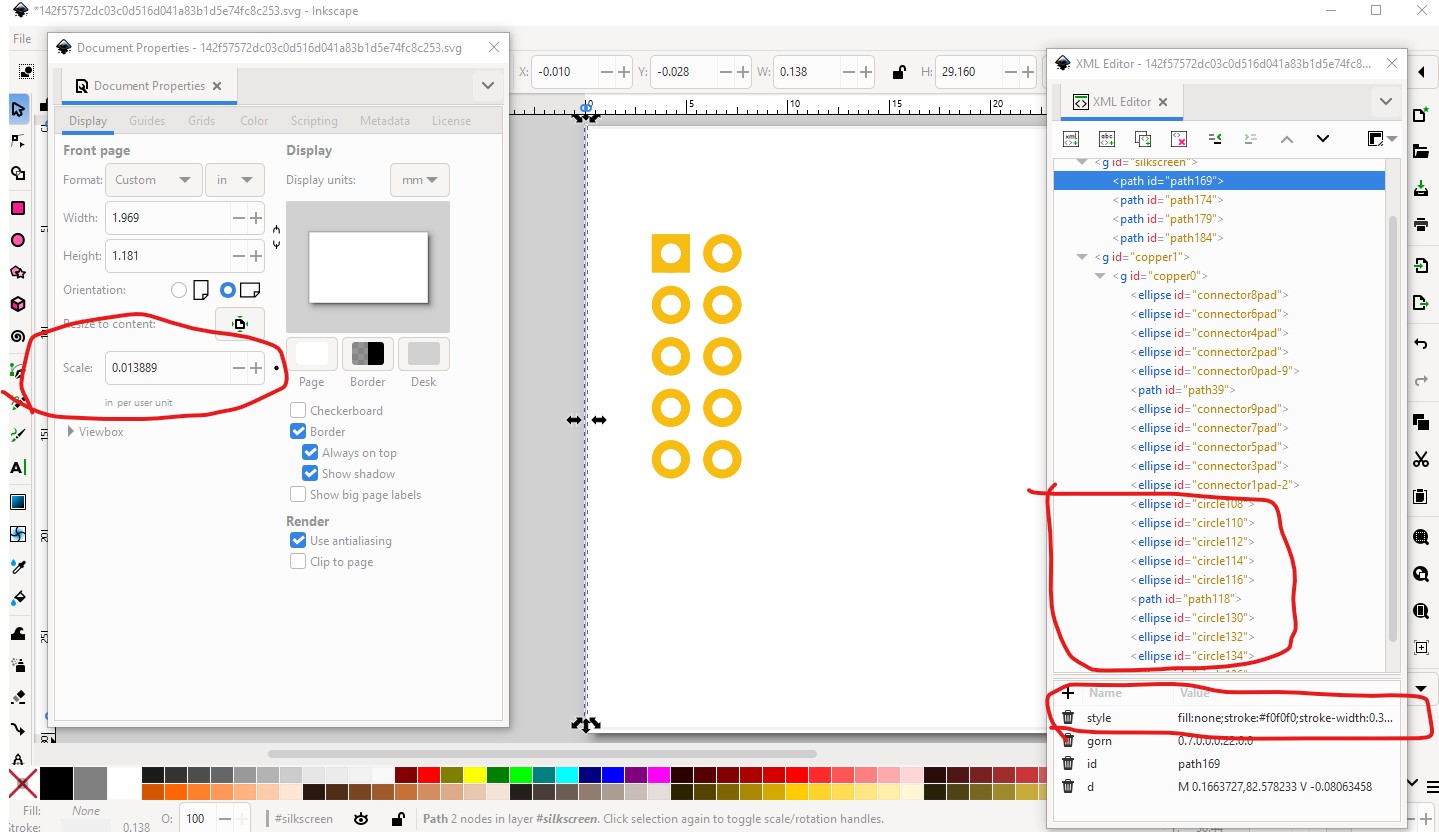

Your svg is fairly screwed up.

It is the wrong scale, the silkscreen colors are wrong (should be black #000000) although that won’t matter, there are extra pads in the copper layers but most importantly the pads are all ellipses and thus won’t produce holes in gerber processing. You need to set the rx and ry value of the pad the same then move it in x or y by 1 increment and then back to change it from an ellipse to a circle. Then check the hole sizes are correct.

Peter
