ESP32 Wroom-32U

[drwho]

Hello I am new to fritzing. I need a part created. Prepared to pay. It is a 38 Pin ESP32-WROOM32U

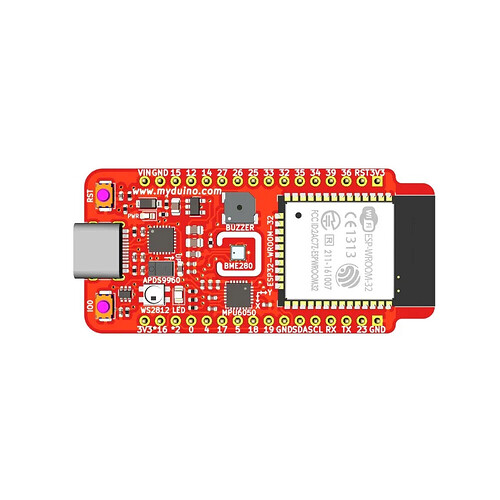

developers module. I have attached a picture. Any help it would be greatly appreciated.

[vanepp]

This isn’t quite the same board (it has mounting holes) but should be close enough for most purposes. You may need to check the width, these come in 3 widths 1.1in 1in and .9in I think this one is 1.1in.

Doesnt export all Parts as SVG

Yep, that is what was needed. The problem is that breadboard and schematic layerIds have a capital in the svg but not the fzp file. This works on Windows (which is case insensitive) but not Linux or the Mac (which are case sensitive.) Both are fixed in this part: edit: replaced the original with the correct part … ESP32-38PinWide-fixed.fzpz (19.7 KB) Here is the change in schematic (the same was done in the breadboard svg as well): [capture] The capital S needs to be lower case to match th…

download the ESP32-38PinWide-fixed.fzpz file from the post above and in Fritzing File->open->ESP32-38PinWide-fixed.fzpz will load it in to your mine parts bin ready for use.

Peter

[microMerlin]

@jorgechacblogspot

free download from the repository some different versions of the esp32 module

A sampling of those shows errors in the parts that will cause problems in some scenarios. The most common error is that the breadboard view svg is missing the layer ID, which means that exporting breadboard view to svg will not work. Actually it “works”, but the part graphics are missing.

[drwho]

Peter, thanks for your help. This seems correct for my needs.
Cheers
Bruce

[bobblessu]

@vanepp hi.
I can’t find ESP32 Wroom-32 with 30 pins, could you please help? I mean fritzing part. Thanks

[vanepp]

It may be this one. If not you would need to provide a website that describes the actual board you have.

GitHub - Atsumitsu/fritzing-parts: Fritzing parts

Peter

[bobblessu]

thank you very much! seems like this one is right.
