Hi dear Peter!,
I need this part, but I haven’t any datasheet.
Fortunately, it fits great on a standard breadboard
(2 x 8pin rows with 17.5mm separation)
The board is 25mm x 20.7 mm
2 Likes
ME = FRITZING BEGINNER.
Just downloaded Fritzing hoping to use this board part.
But it says
“cannot read file” when I try to Import to My parts
Using Window 10
Works for me on Fritzing 1.0.6 on Win10:
Please post the actual error message you are getting when you try and load it.
edit:
How did you try and load it as well, double click on the file, File→open→filename, something else (dragging the file in to a Fritzing window should load it?)
Peter
wOW FAST REPLY.

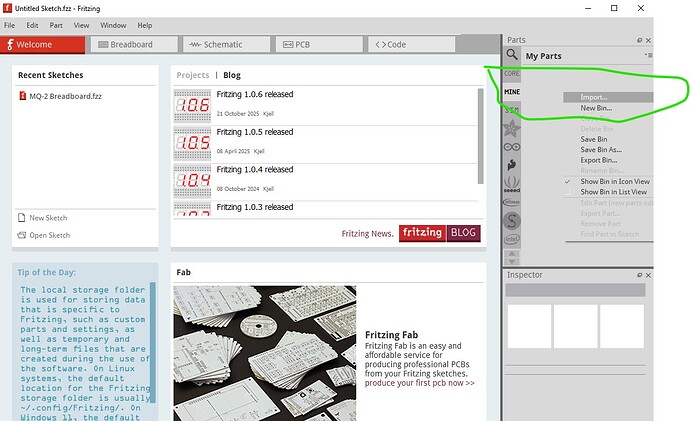

I was using import in the parts menu under Mine.
In the meantime I tried importing a similar file and for that got
Part ‘Esp32-c3 super mini’ was loaded with warnings:
- Invalid Version
Invalid Version
─────────────────────────
The fritzing version ‘1.01’ is invalid.
The part might not work properly.
Location: Line 2, Column 0

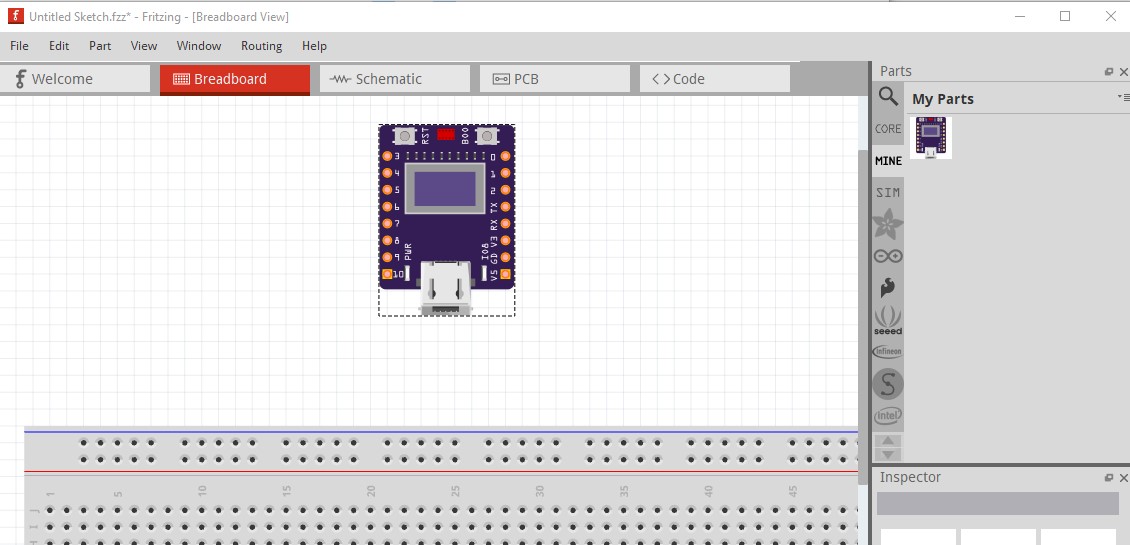

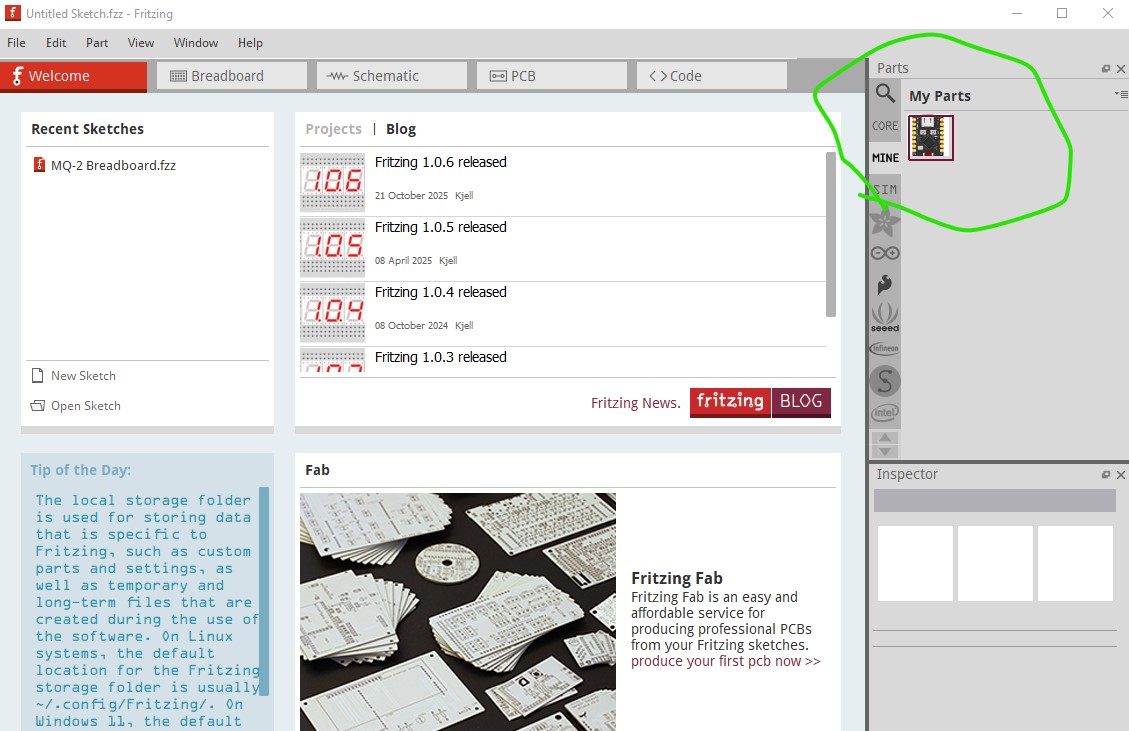

I then went back to this file and clicked (maybe double, but I don’t think so) and Fritzing opened and imported it directly to Core parts and it looks great.
This is my first hour using Fritzing. Does this part even include the internal working that can support simulation?
I have now been able to find more info on the part and that it doesn’t have SPICE data so won’t support simulation
