Hi! I couldn’t find a model for the E22-900T30D, so I spent a long time trying to make my own, at least for something visual.
E220-900T30D.fzpz (4.8 KB)
I’m also sharing the 3 views I used, thanks to ChatGPT in case anyone finds them useful.

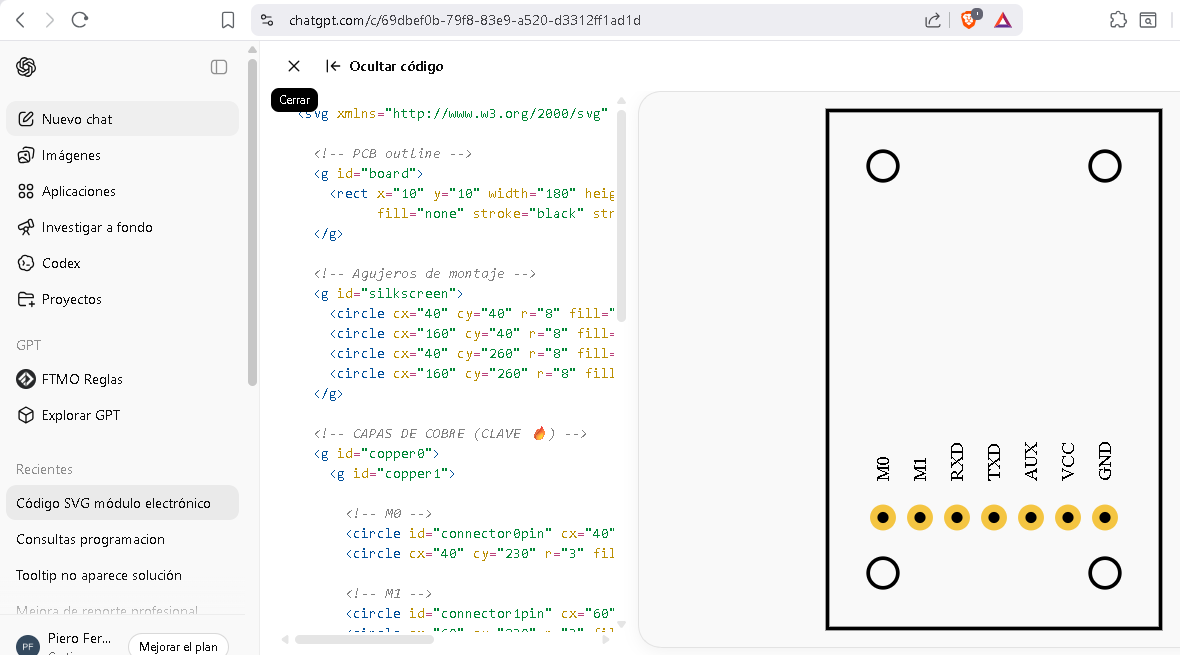

If you want to edit the code, you can change the .svg extension to .txt — at least that’s how I did it to be able to view and edit the code, since I’m new to this stuff. You could also paste it into ChatGPT and ask it to explain how to edit it, and from ChatGPT itself you can edit it and see the result. Cheers!
E220-900T30D (2).zip (2.4 KB)
Good evening,
should I run the part through the part check again? There are a few things in the svg files that could still be changed.
If you’d like, I’d be happy to do that for you.
Best regards, Harald!
Sure! no problem, as I mentioned I’m just starting out with this kind of stuff, and I uploaded it in case someone can improve it or just wants it as something visual.
Great, I’m going on a bike ride tomorrow first. I think I’ll manage it over the weekend.
Best, Harald!
Hello,
I just had a quick look and downloaded the datasheet. There I found the exact dimensions and 4 additional mounting pads. I still need to incorporate those into the PCB view. It might take a bit longer than expected.
Regards, Harald!
1 Like
Hi,
so, here’s a version that didn’t show any errors during the check either. I hope it fits your project.
E220-900T30.fzpz (6.1 KB)
Regards, Harald!
Thank you so much! It’s perfect. I’ll use it for my diagram. Cheers!
Sounds good. Best of luck!
Cheers, Harald!
