Hello, I kindly ask for your help.

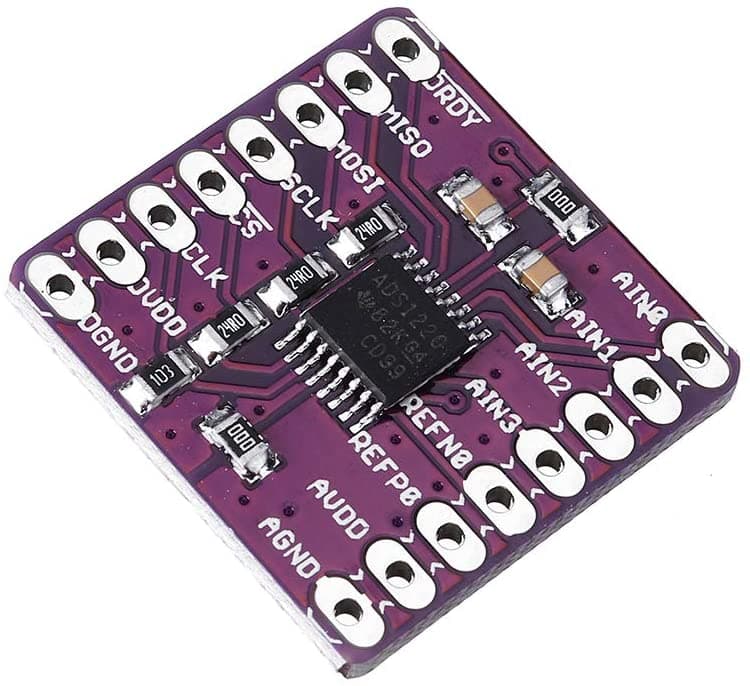

I’m currently working with a CJMCU-1220, which is a 24-bit ADC. I’m looking to integrate this component into Fritzing, but I haven’t been able to find a part for it yet. I’m wondering if someone has already created it or if there’s a similar part available that I could use. If so, I’d really appreciate it if you could share it with me. Thank you very much in advance!
Best regards,
There doesn’t appear to be a part (you can check that by doing a google search of the form “fritzing part CJMCU-1220”.) As a result you would need to provide a web site for the exact board you want which contains the physical dimensions of the board and the connectors and their positions as is requested by the template in this category. With that it is possible to make a part (without that, obviousl not …)
Peter
I found this AliExpress page where the dimensions of the board are mentioned:
However, I couldn’t find a page with detailed dimensional drawings or specifications, so I took the measurements manually.
I obtained the following approximate values:
Pin spacing: ~2.9 mm

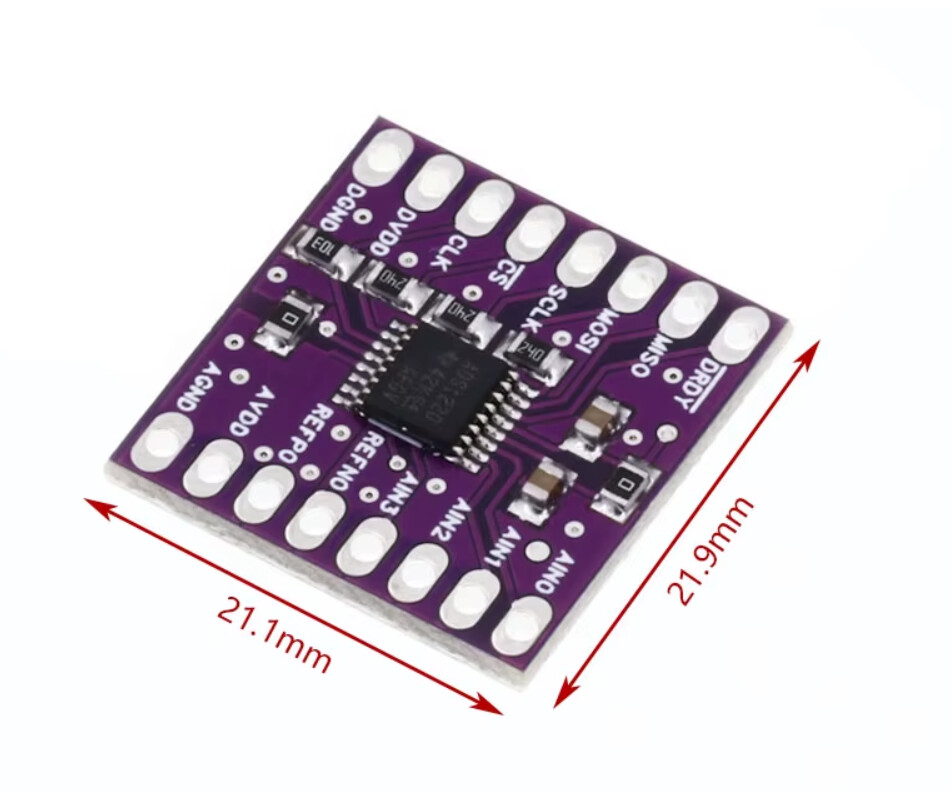

Board width: 21.9 mm
Board length: 20.9 mm
Board height: 1.5 mm
I really appreciate your support and collaboration.
Thank you so much for your support , this was exactly what I needed!
