Hi so I am creating a Vibration sensor prototype for a handler machine but it seems that fritzing doesn’t have the part I’m looking for also along with the vibration sensing thingy I’m also integrating a continuous ground monitoring system for it using current sense and using an op amp but the multiplexer i chose don’t have an existing fritzing part
It would be my pleasure if anyone could help, I’ve attached here the data sheet links for both parts
H3LIS200DL pdf, H3LIS200DL Description, H3LIS200DL Datasheet, H3LIS200DL view ::: ALLDATASHEET :::
CD74HC4067 pdf, CD74HC4067 Description, CD74HC4067 Datasheet, CD74HC4067 view ::: ALLDATASHEET :::
It is unclear if you want the chips (the linked data sheets indicate that) or the DfRobot board here

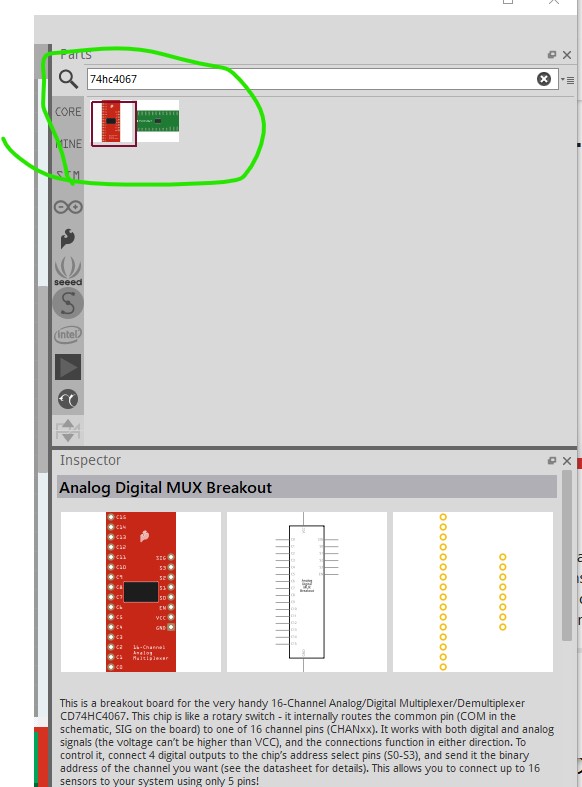

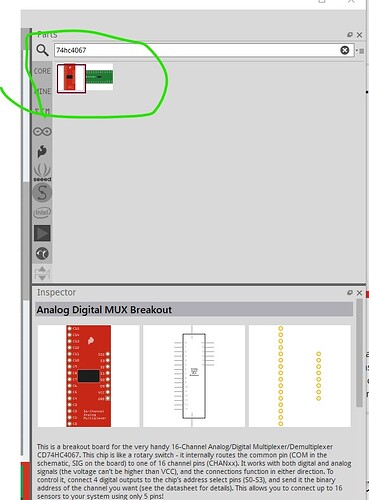

(for which there doesn’t yet appear to be a Fritzing part.) There doesn’t appear to be a part for the 74hc4067 in DIP (although the generic IC will allow you to make one.) but there is both a breakout board and an SMD IC available in core parts.
So not enough information to do anything with.
Peter
Oh yeah I just saw the the breakout which also works fine thank you for pointing that out, so I guess I only need the DfRobot board sorry for not clearing that thanks for the help
This part should do what you want. Note pcb view has been suppressed as not useful.
dfr-sen0412.fzpz (9.5 KB)
Peter
1 Like
This is great, Thank you so much!!
