Brushless DC servo motor NIDEC 24H

parts help
1

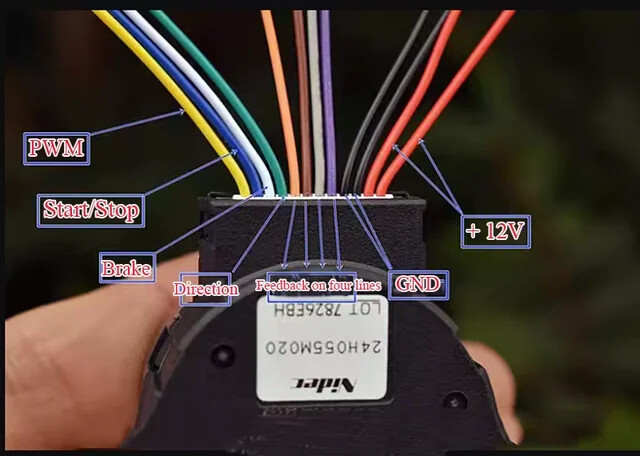

Hello! I am looking for Brushless DC servo motor for my school project. It is NIDEC 24H (mine is 12pin)

I send you the datasheet and the manufacturer link, thanks a lot!!

image270×270 49.9 KB

2

image640×456 68.2 KB

3

This part should do what you want.

edit:

Change part to 12 pin version. Note the moduleId is the same so you will need to delete the current part from your mine parts bin by right clicking on the part in the parts bin and selecting remove part, then shutdown Fritzing answering yes to save parts and yes to save parts bin (no to save sketch is fine) in order to really remove the part. When you restart Fritzing it should let you load the new part below.

NIDEC-24H-servo-12pin.fzpz (5.9 KB)

Peter

4

Thanks a lot ! you know if can I modify the file beacause I have one with 12 pins :slight_smile:

5

You probably won’t be successful at changing it, so I made the changes and replaced the part as noted you will need to remove the current part to be able to load the new version.

Peter

6

Thank’s a lot ! you save me !!!
