We would like to share a Fritzing part for the Arduino UNO Q. We could not find one, so we made it for our tutorials and want to share it with everyone.
Please note: this is a community part made by newbiely.com. It is not an official Arduino part.
Download:
Arduino-UNO-Q.fzpz (8.3 KB)
Import it into Fritzing (File > Open, or right-click a parts bin > Import).
About the part

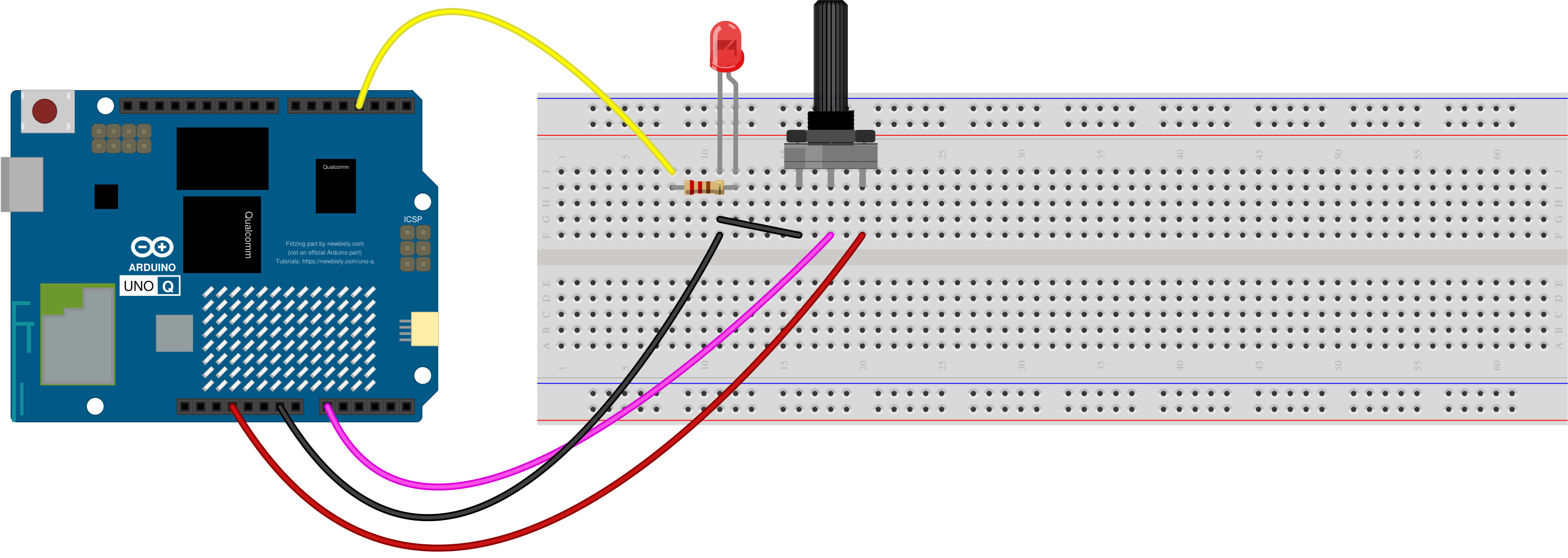

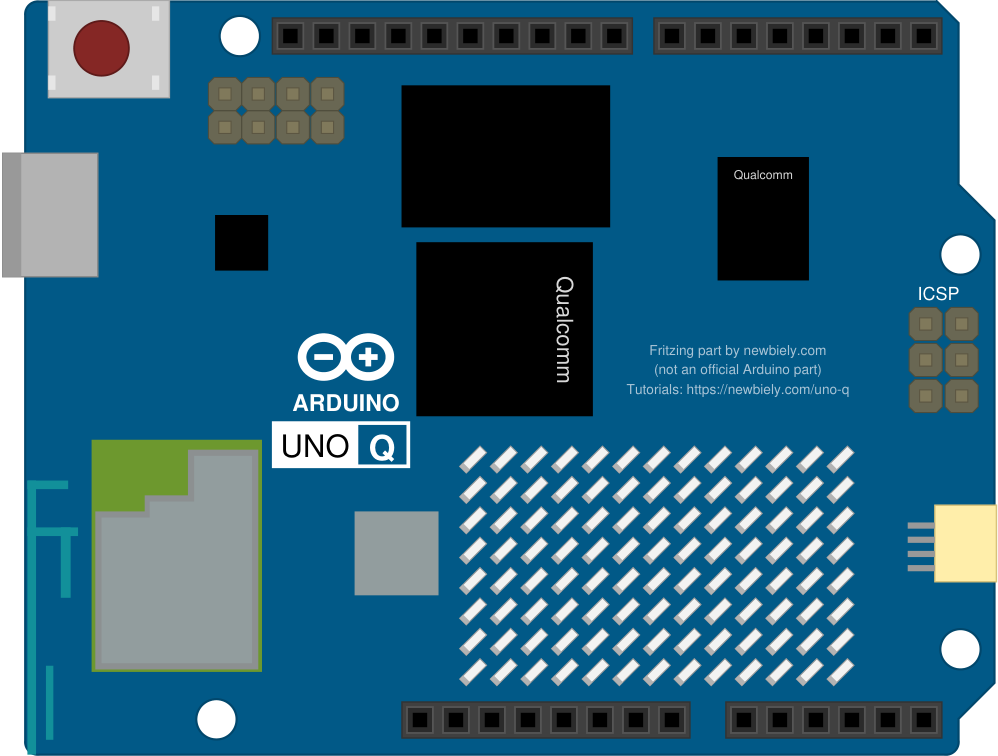

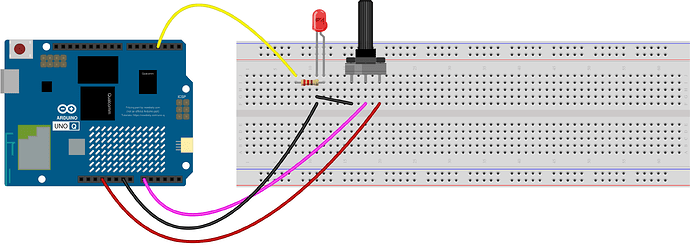

- Breadboard view: the UNO Q board with the Qualcomm QRB2210 and STM32 chips, USB-C, the 13 x 8 LED matrix, ICSP and Qwiic connectors.
- Pins: the Uno headers (D0-D13, A0-A5, IOREF, RESET, 3.3V, 5V, GND, VIN, AREF, SDA, SCL), ICSP (6 pins) and Qwiic (4 pins). GND, 3.3V, 5V and RESET are bused.
- Legs and holes are grey, schematic pins are 100 mil long on the 100 mil grid.
- It uses the same frame and connector IDs as the Arduino UNO R4 WiFi part, so a sketch made with the R4 part can move to this part by changing only the part.
Tutorials for the Arduino UNO Q: https://newbiely.com/uno-q
