Name of the part:
2S/3S Type-C USB Step-Up Boost Li-ion Battery Charger Module
Previous work, similar parts:
There are many single-cell (1S) Li-ion charger modules available as Fritzing parts (like those based on the TP4056), but multi-cell (2S/3S) boost chargers with a Type-C input are less common. This part is unique due to its ability to charge 2 or 3 series batteries from a standard 5V USB input.

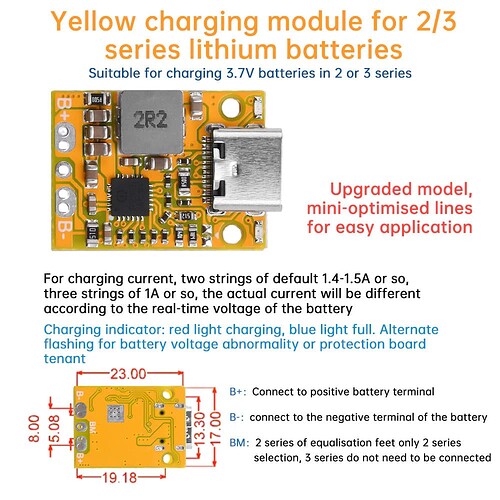

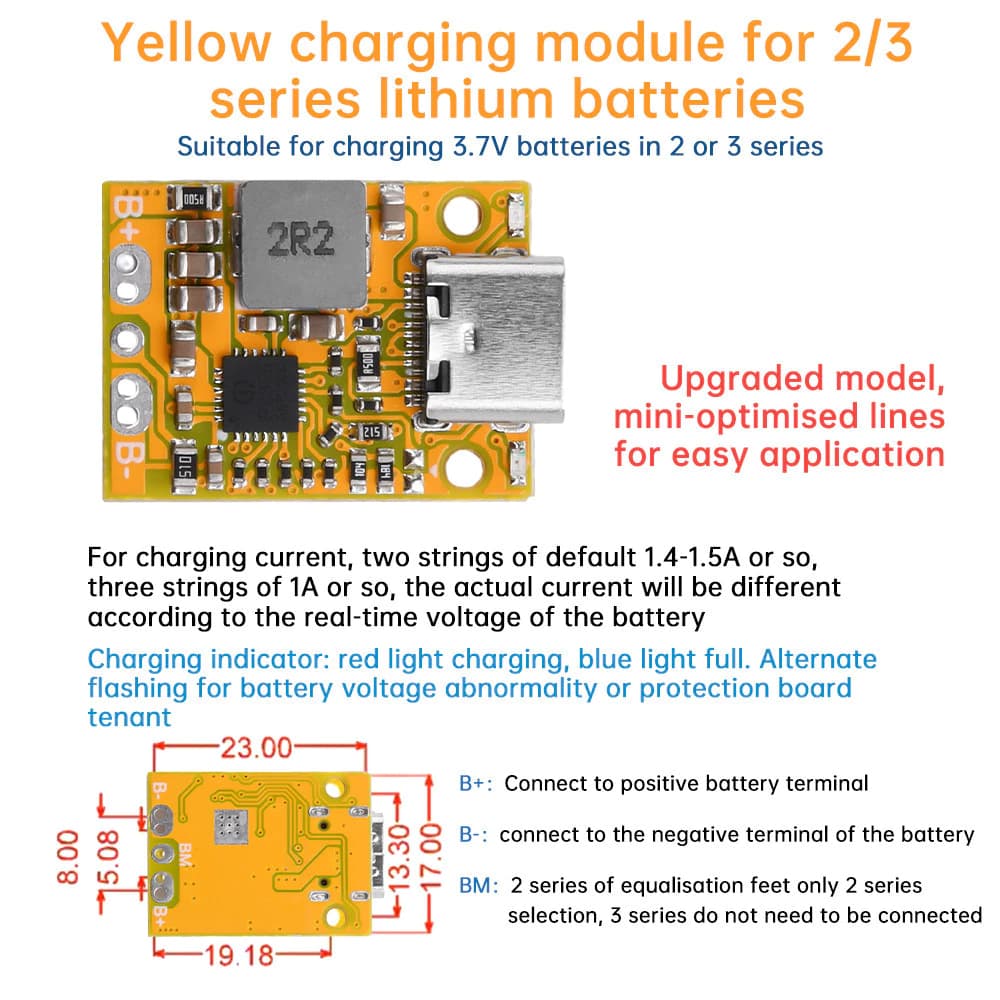

Top view:
Datasheet:
As this is a generic module, a specific manufacturer’s datasheet is not available. However, detailed specifications and operating instructions can be found on various vendor pages.
- Product Listing with Specifications (DE): https://www.ebay.de/itm/276554016466
- Similar Product Listing (EN): http://vi.aliexpress.com/item/1005007377814552.html?gatewayAdapt=glo2vnm
Key Specifications:
- Input Voltage: DC 3-6V (Recommended DC 3.7V or 5V via Type-C)
- Charging Voltage (Output): 8.4V (for 2S), 12.6V (for 3S) - automatically selected.
- Charging Current (Default): Approx. 1.4A-1.5A for 2S, Approx. 1A for 3S.
- Indicator Lights: Red light for charging, blue light when full. Flashing indicates a battery abnormality.
Type:
Breakout board, sub assembly, plug in module (Other: Battery Charger)
Footprint:
The board has a USB Type-C connector for power input and three main solder pads for battery connection.
- B+: Connect to the overall positive terminal of the battery pack.
- B-: Connect to the overall negative terminal of the battery pack.
- BM: Connect to the middle point between the two batteries for 2S balancing/equalization. This pad is left unconnected when charging a 3S battery pack.
