Name of the part:
2S/3S 18W Mini Fast Charging Module
Previous work, similar parts:
While there are Fritzing parts for various battery charging modules, this one is notable for its very small size, USB Type-C input, and support for fast charging protocols to charge multi-cell (2S/3S) battery packs efficiently. It is a more compact and modern alternative to older, larger charger boards.

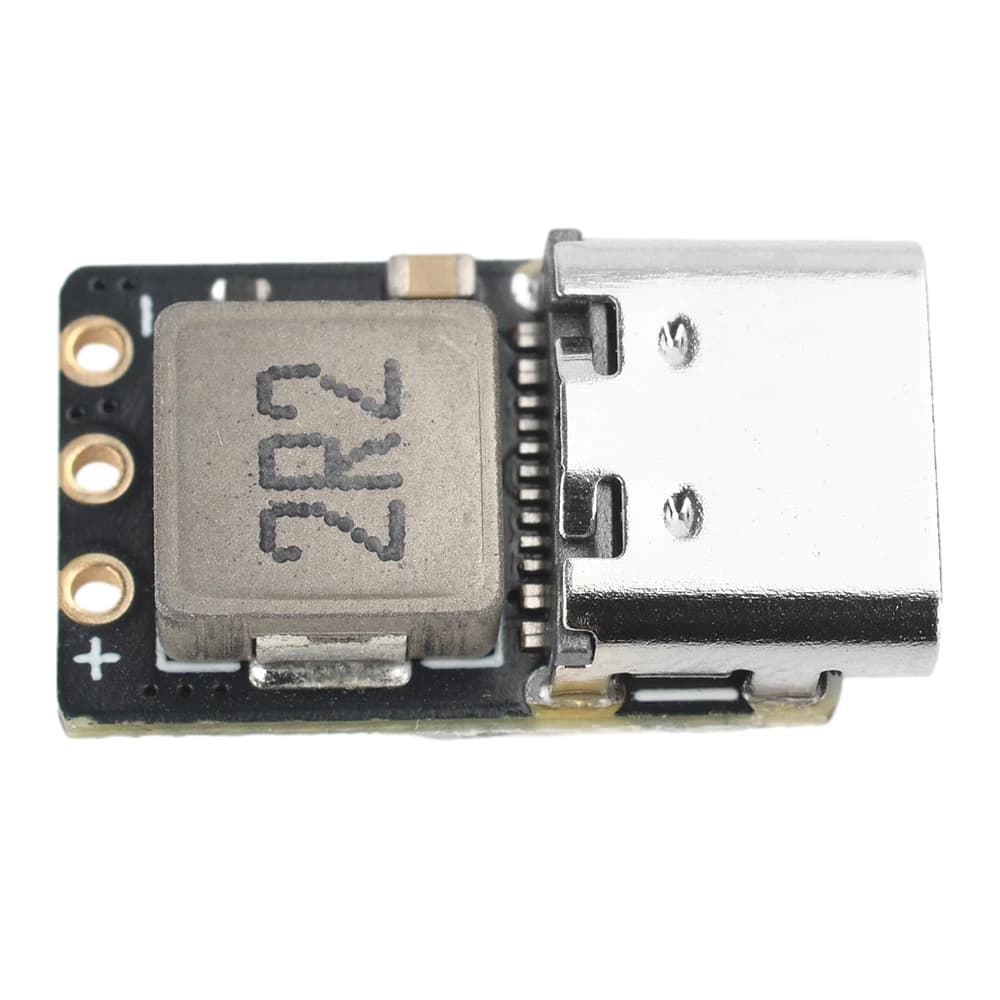

Top view:
Datasheet:
This is a generic module based on the Injoinic IP2326 IC. A specific manufacturer’s datasheet for the module is not available, but the product page and the IC datasheet provide all necessary technical details.
- Product Page with Specs & Wiring: https://de.aliexpress.com/item/1005008676573097.html
- IC Datasheet (in Chinese): http://www.injoinic.com/wwwroot/uploads/files/20220224/e7b0a8f58356a6a127a3c35b31f79590.pdf

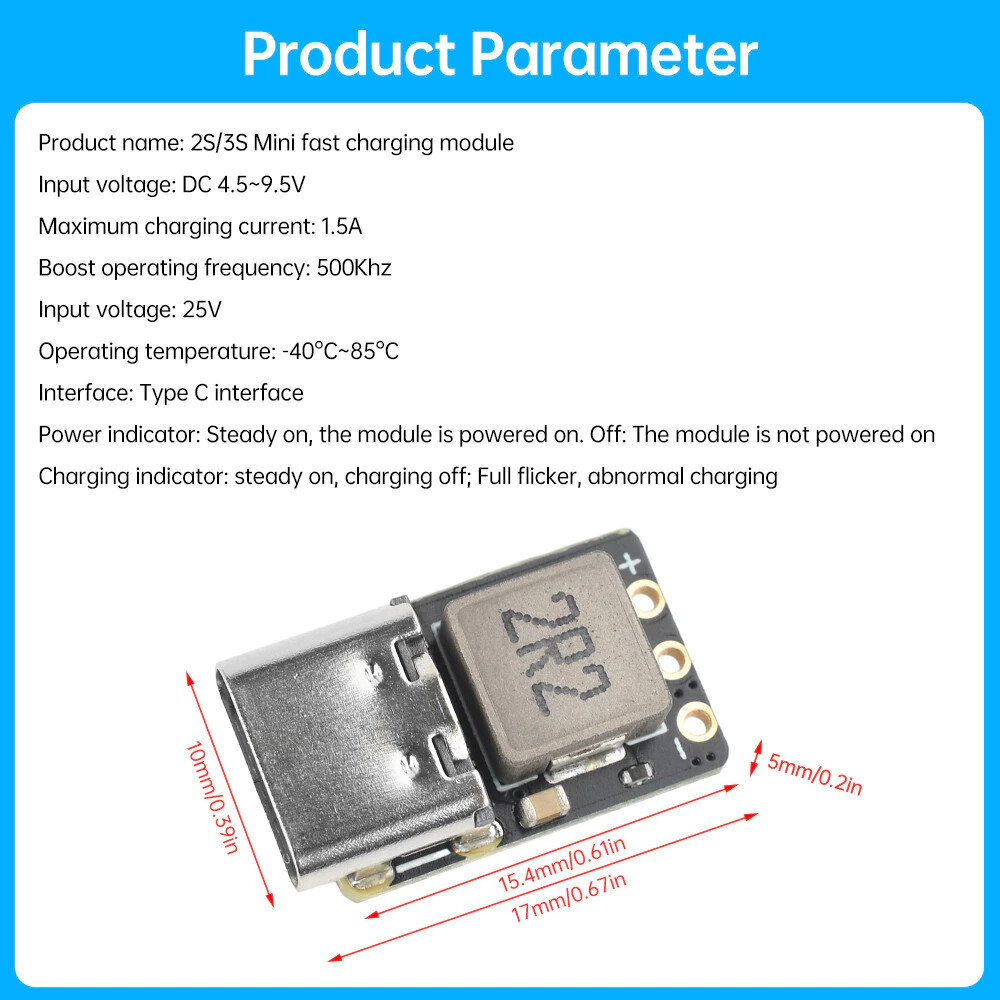

Key Specifications:
- Product Name: 2S/3S Mini fast charging module
- Main IC: IP2326
- Input Voltage: DC 4.5V-9.5V (via Type-C)
- Output Voltage: Charges 2-cell (8.4V) or 3-cell (12.6V) Li-ion batteries
- Maximum Power: 18W
- Interface: USB Type-C
Type:
Breakout board, sub assembly, plug in module (Other: Battery Charger)
Footprint:

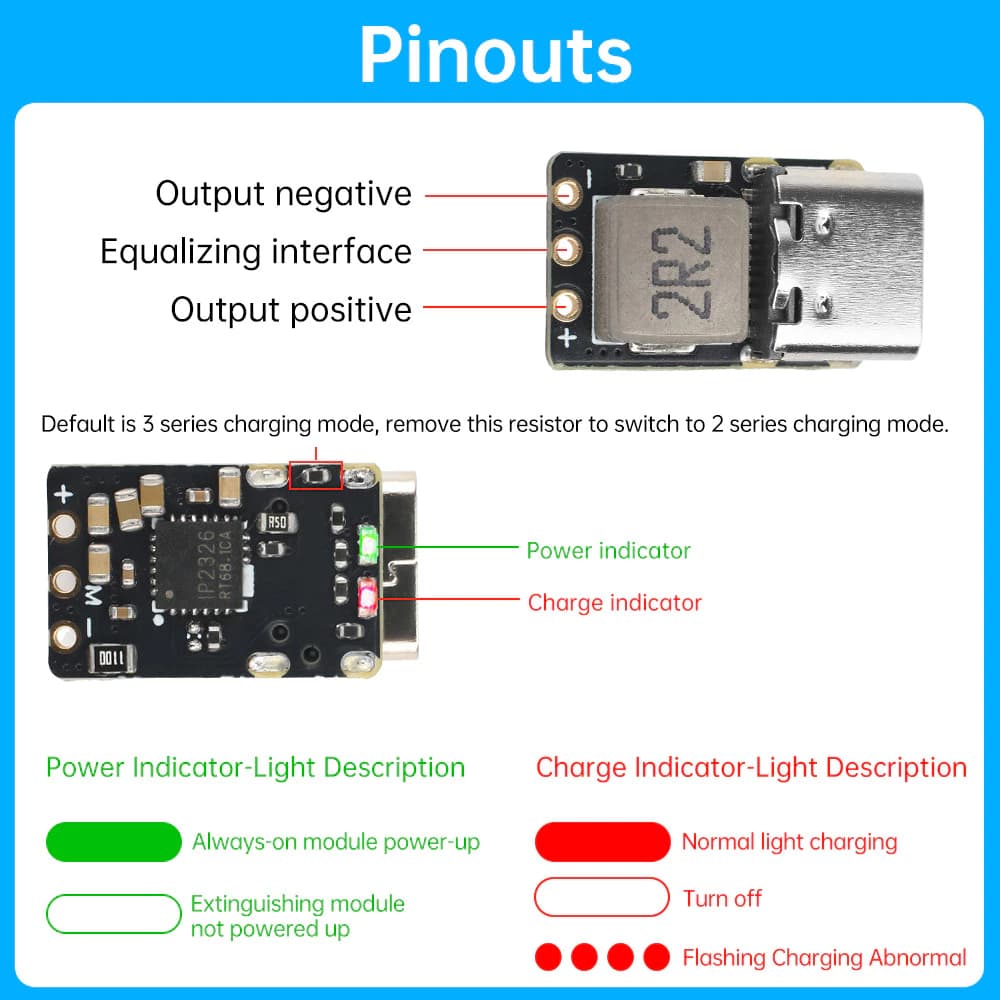

The module has a USB Type-C connector for power input and three solder pads on the end for battery connection.
- +: Connect to the overall positive terminal of the battery pack.
- -: Connect to the overall negative terminal of the a battery pack.
- M: (Middle) Connect to the center tap of a 2-cell (2S) battery pack for equalization. This pad is left unconnected when charging a 3-cell (3S) pack.
