1N5400 - 1N5408 Rectifier Diode Terminal Bigger than 1mm

Hi all,

Anyone can help me to create 1N5400 - 1N5408 diode part. I have tried all the diode on fritzing and the internet but I found the terminal for 1N5400 - 1N5408 is greater than 1mm which is not fit with 1mm TH.

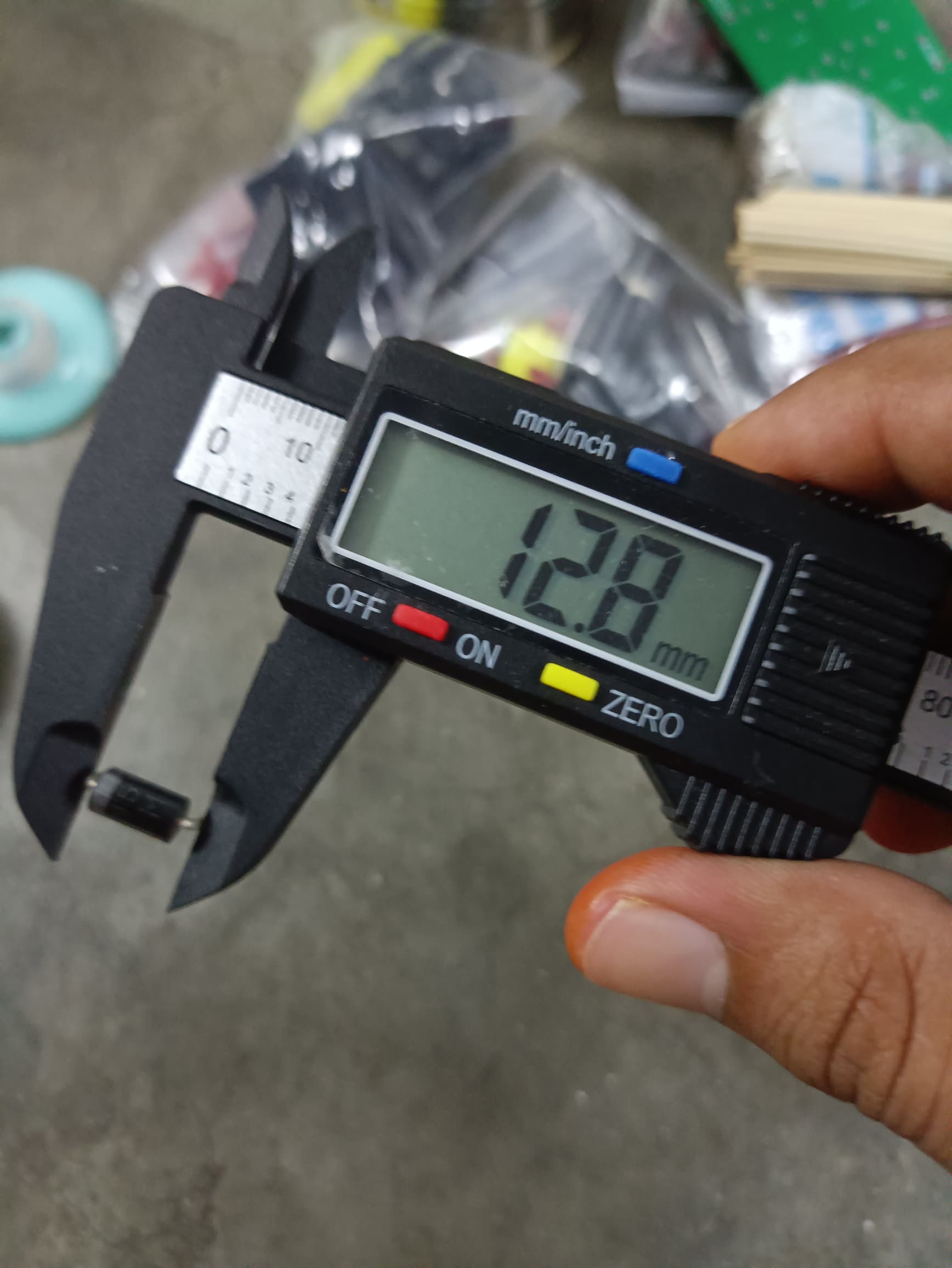

I have measured and refer to datasheet the terminal is ±D1.3mm. So anyone can please help me to create the part which is the opening is fit with the diode terminal?

Refer below the datasheet for 1N5400 - 1N5408 diode:

Thank you.

This part should do what you want. Pcb hole size has been increased to 0.06in (slightly larger than 1.3mm.)

edit:

Correct the case size and pad spacing (pcb and breadboard) to 0.5in

1n5400.fzpz (4.9 KB)

Peter

1 Like

Thanks a lot master!

Hi @vanepp

The part you sent me is great. The opening actual is good with 1N5400 diode.

But I think it will great if you do it on 500 mil spacing causes my diode cannot fit into the hole.

Thank you.

My apologies I didn’t check the case size or layout. I have replaced the part with a corrected one.

Peter

1 Like

This would not be overly helpful for this part, but I sometimes place a second via after the diode to be able to accommodate different sizes, should design or availability change.
