Part request for ESP32-H2-DevKitM-1

parts help
1

Name of the part
ESP32-H2-DevKitM-1

Previous work, similar parts
There are some ESP32 symbols available but I could not find any for this 2 x 15 pin board.

Top view

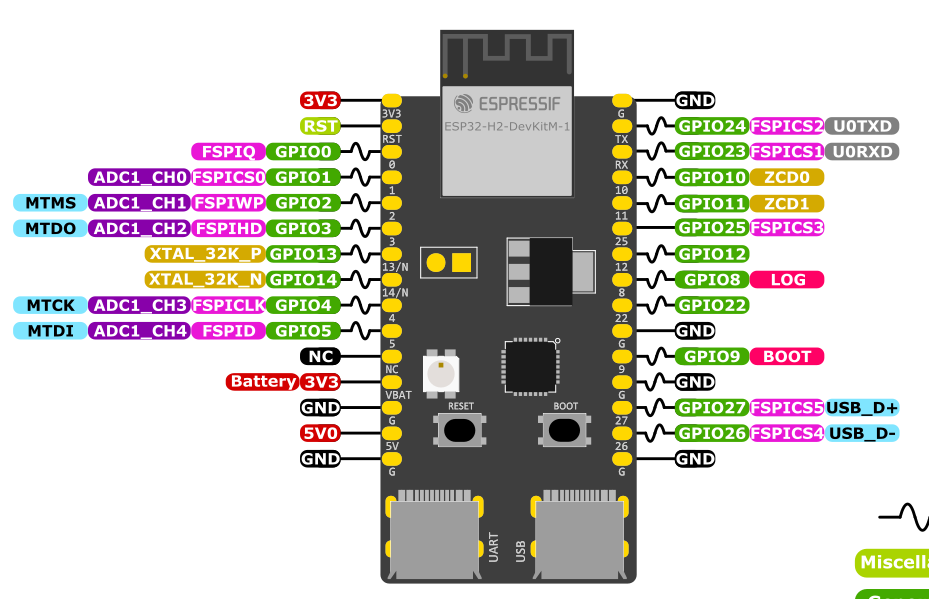

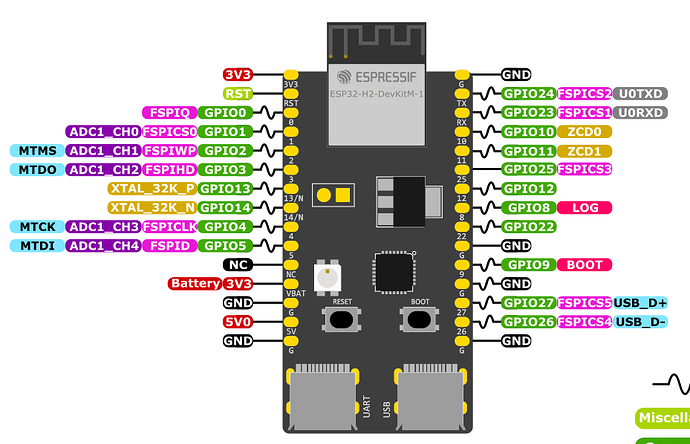

This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

Foto or vector graphic, no links here please.
take from Espressif SIte (link below).

grafik
grafik929×599 105 KB

Datasheet
The official documentation of the part manufacture is linked here:
https://docs.espressif.com/projects/esp-dev-kits/en/latest/esp32h2/esp32-h2-devkitm-1/user_guide.html#hardware-reference

Type
Breakout board, sub assembly, plug in module (A)

2

While there are several 15pin ESP boards none appear to match this one so I will make one.

Peter

1 Like
3

This part should do what you want. Note the current connector (normally a jumper) doesn’t appear on pcb as it is not accessible from there.

ESP32-H2-DevKitM-1.fzpz (28.6 KB)

Peter

1 Like
4

Thank you so much Peter.
