Looking for raspberry pi pico UPS

parts help
1

Name of the part
Raspberry Pi Pico/Pico W UPS Power Supply Uninterruptible UPS HAT,Support 18650 Lithium Battery

Previous work, similar parts
In case there are similar Fritzing parts, or you already started work, please link it here.

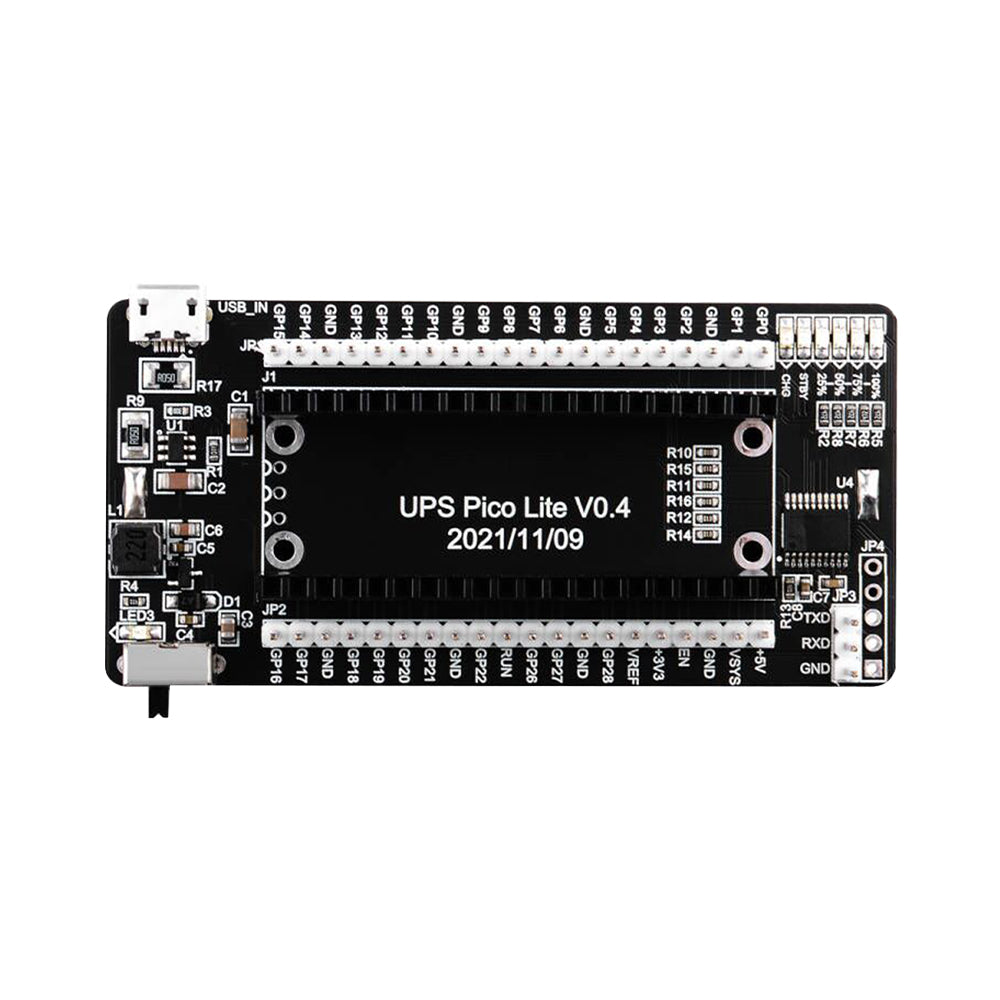

Top view
This picture shows the part from above, so that is easy to see were connectors should go, and which diameter they have.

Foto or vector graphic, no links here please.

Datasheet
The official documentation of the part manufacture is linked here:

https://wiki.52pi.com/index.php?title=EP-0159

Please add a link to PDF of the manufacturers datasheet

Type
I did not read this
Breakout board, sub assembly, plug in module (A)
Antenna (AE)
Battery (BT)
Capacitor (C)
Diode (D)
Display (DS)
Fuse (F)
Hardware , mounting screws, etc. (H)
Jack, fixed part of a connector pair, header (J)
Relay (K)
Inductor, Coil, Ferrite bead (L)
Loudspeaker, Buzzer (LS)
Motor (M)
Microphone (MK)
Plug, moveable part of a connector pair (P)
Transistor (Q)
Resistor (R)
Thermistor (RT)
Varistor (RV)
Switch (S)
Transformer (T)
Integrated Circuit (IC)
Crystal, Oscillator (Y)
Zender diode (Z)
Other (please specifiy)

Footprint
E.g. SOT23-5 , TO-220.
This usually does not apply to breakout boards.

2

This part should do what you want with a few problesm. Pcb view has been suppressed as not useful (the cpu board pcb will appear in pcb.) You can drag the appropriate CPU board in to breadboard and it will mostly connect like this:

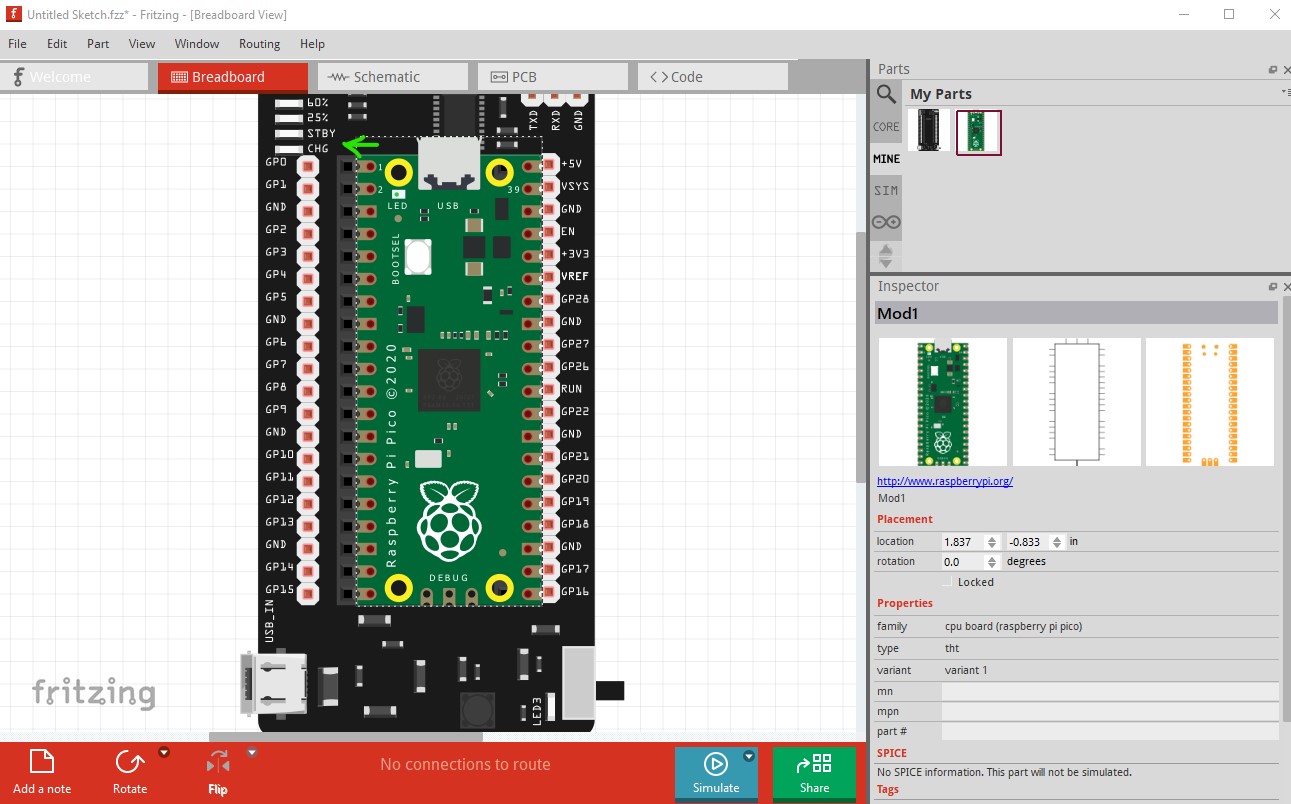

Here the CPU board is a pin off from the female connectors, move the cpu board one pin left and it will connect

capture

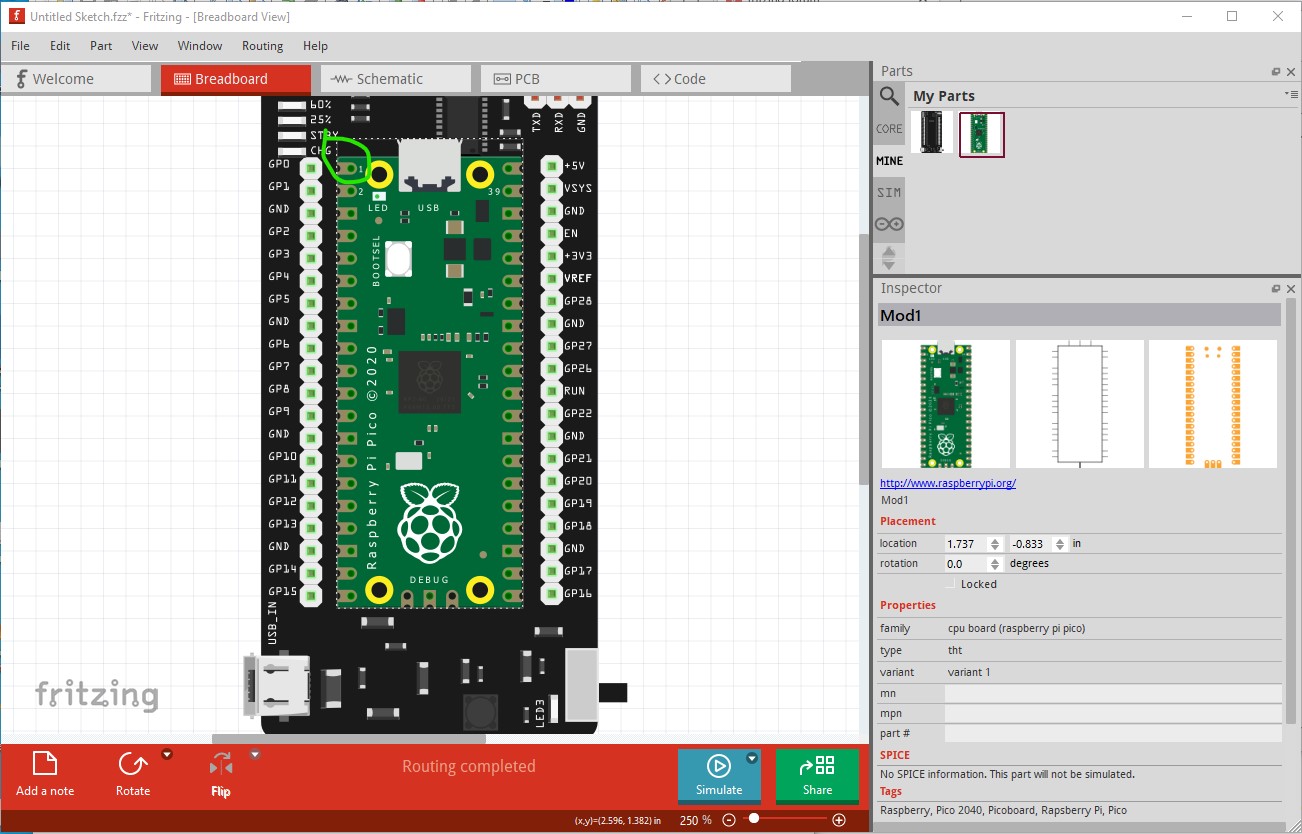

capture1291×804 170 KB

like this (note all the connections go green indicating a connection.)

capture1
capture11302×834 187 KB

In schematic if you move the cpu board schematic correctly it will mostly connect (it will be at a random position to start and needs to be moved!)

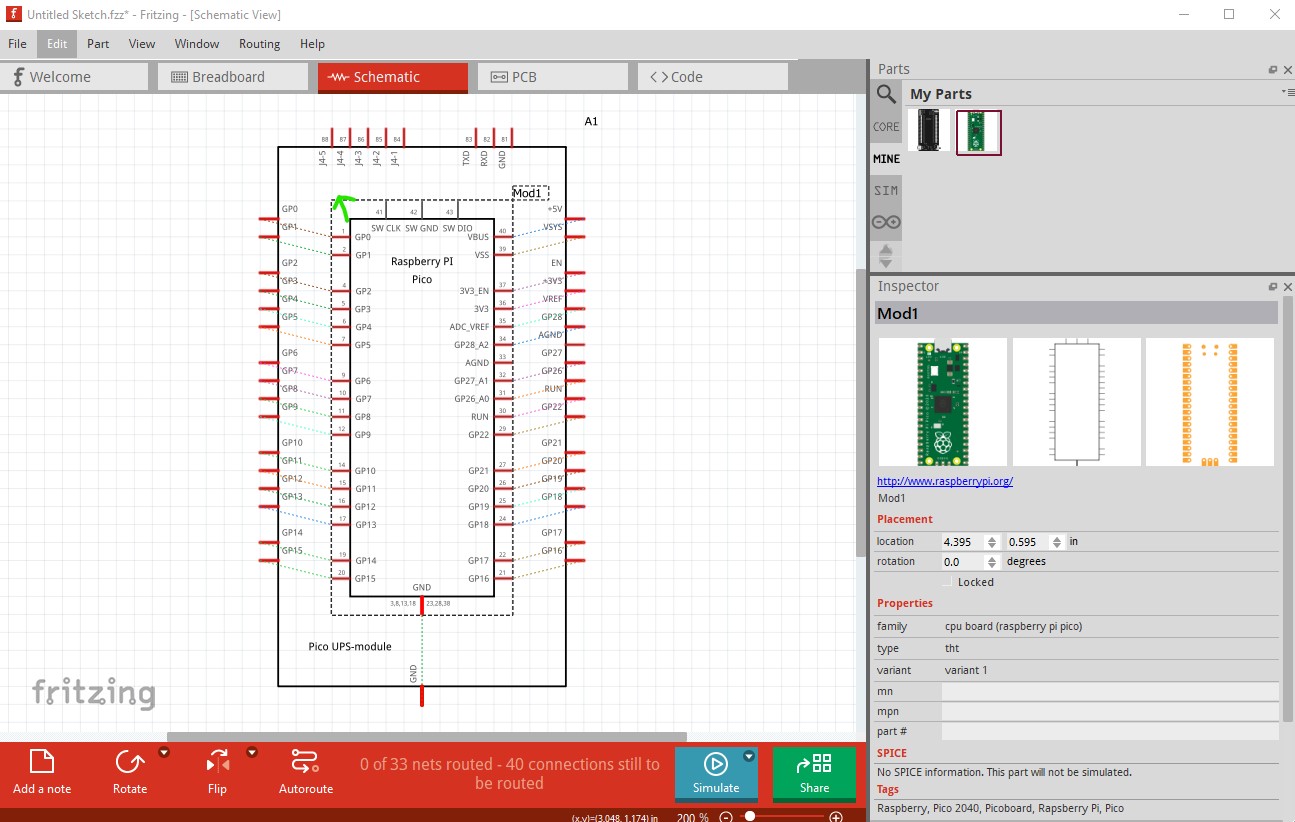

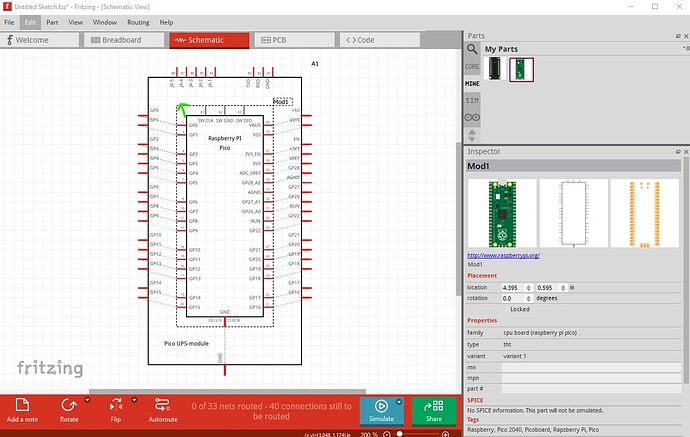

capture2
capture21295×822 181 KB

It mostly connects, except for a few of the grounds (as only one connection to a net is allowed to a bussed net in schematic) which leaves no connection on AGND and several nets not routed in the status bar, but this is as good as it gets AFAIK.

capture3
capture31118×826 149 KB

Here is the part.

Raspberry-Pi-Pico-ups-module.fzpz (28.6 KB)

Peter

3

Thank you very much for your help!
Do you have an idea how to connect a capacitor in parallel to the battery contacts?
on the board, the battery clamp solder bumps are in the middle of the upper and lower end of the board on the side, where th pi pico is placed in.
Best, Kai

4

In a word no :slight_smile: , also no idea why you would want to place a capacitor across the battery. The battery is essentially a capacitor, there doesn’t appear to be a reason to put a capacitor across it. A capacitor may affect how the charging circuit works and therefore be dangerous as well. LIPO batteries are dangerous devices and best left alone by and large.

Peter
